Air Diffential Pressure Switch PS Series

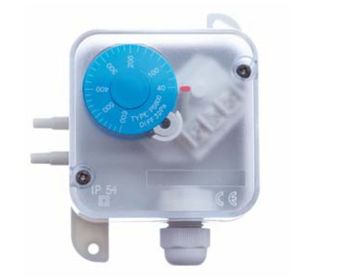

PS Series Pressure Switch

Air differential pressure switch are products giving information in set values which measuring the pressure difference between two points.

  • In vantilation sector
  • In filter pollutions
  • In operating rooms and many differnt sectors can be used.
Technical Documentation
Technical Properties
  • Body: ABS
  • Memebran: Silicon
  • Working Temperature: -20....+60C
  • Maximum pressure: 50 Kpa
  • Used Fluid: Air and non-aggressive gases
  • Contact Life: 1000 000
  • Protection Class: IP 54
  • Connection: ∅ 5 mm hose

Model and Measurement Ranges

Model

code

Pressure

range

Pressure adjustment range

Low value to switching precision

High value to switching precision

Contact current strength for resistive load

Contact current strength for inductive load

PS200

20…200 Pa

10 Pa

20Pa ±5 Pa

200Pa ±20Pa

0,1A / 250VAC

-

PS300

30…300 Pa

20 Pa

30Pa ±5 Pa

300Pa ±30Pa

3A / 250VAC

2A / 250VAC

PS500

30…500 Pa

20 Pa

30Pa ±5 Pa

500Pa ±30Pa

3A / 250VAC

2A / 250VAC

PS600

40…600 Pa

30 Pa

40Pa ±5 Pa

600Pa ±30Pa

3A / 250VAC

2A / 250VAC

PS1500

100…1500 Pa

80 Pa

100Pa ± 10Pa

1500Pa ±50Pa

3A / 250VAC

2A / 250VAC

PS4500

500…4500 Pa

180 Pa

500Pa ± 50Pa

4500Pa ±200Pa

5A / 250VAC

2A / 250VAC
