Air Differential Pressure Transmitter DMS600

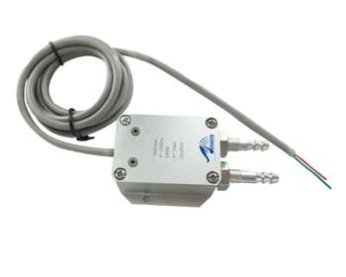

High-Quality Air Differential

  • Air Differential Pressure Transmitter DMS600 easy to install with Φ8 hose connection
  • Measuring very small differential pressure values in gases
  • Robust and well-sealed aluminum alloy body
  • Differential Pressure Transmitter Zero and Span values adjustment feature
  • Short circuit protection and reverse polarity protection
  • Full range compensation for zero and sensitivity temperature
  • Strong anti-interference capacity, stability performance

Application:

Applicable to filter pollution, Boiler processes, Underground ventilation applications, mining industries, clean air rooms and automatic pressure sensing process control field.

Technical Properties:

  • Product Code: DMS600
  • Pressure range: 0 ~250Pa… 1kPa… 100kPa (Ask for vacuum)
  • Pressure Type: Differential Pressure
  • Signal Output: 4~20mA
  • Supply Voltage: 16 ~36V DC
  • Working temperature: -10℃~60℃
  • Process Temperature: -10℃~60℃
  • Storage Temperature:-40℃~125℃
  • Zero temperature. coefficient: ±2.5%FS (@0℃~50℃)
  • Sensitivity temperature. coefficient: ±3%FS (@0℃~50℃)
  • Overpressure: 200% FS
  • Mechanical Vibration: 20G (20 ~5000HZ)
  • Comprehensive Accuracy: 100Pa, 250Pa: ±3% FS
    500Pa, 1kPa, 2kPa: ±2%FS
    5kPa, 7kPa, 10kPa: ±1.5% FS
    10kPa ~100kPa: ±0.5%FS
  • Insulation: 200MΩ / 250VDC
  • Response Time: ≤1ms (up to 90% FS)
  • Long-term stability: ±0.2% FS/year
  • Protection Class: IP65
  • Material: Stainless steel or aluminum alloy for housing
  • Media compatibility: Any media compatible with stainless steel or aluminum alloy
