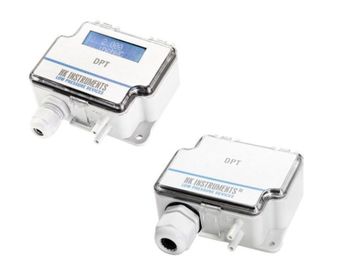

Air Differential Pressure Transmitter
Air Differntial Pressure Transmitter was designed to measure different of pressure amount between two points. It is used at vantilation sector, filter pollutions, operating rooms.
Technical Documentation
- PDF l Technical Properties
- PDF l User Guide
- PDF l Connection Scheme
Technical Properties
- Measurement Range:
- Simpling Time: Changable with 0,8 – 4 sec jumper
- Changable Measurement Unit: Pa, kPa, mbar , inchWC, mmWC, PSI (changable with jumper)
- Appropriate Fluids: Air and non-aggressive gases
- Measurement Element: Piezoresistive
- Maximum Pressure: 400kPA
- Precision: ±1,5%
- Supply Voltage: 24 V DC or AC
- Output Signal: 0...10 volt DC (min load resistance 1 kohm)
4....20mA (maximum load resistance 500 ohm) - Material: Body ABS, covering PC, Pressure Connections ABS, Tube soft PVC
- Temperature: -10....+50C
- Humidity: 0...95 % RH
- Protection Class: IP 54
| Model 250 | Model 2500 | Model 7000 |
|---|---|---|
| 0…25 Pa | -100…+100 Pa | Pa 0…1000 Pa |
| 0…50 Pa | 0…100 Pa | 0…1500 Pa |
| 0…100 Pa | 0…250 Pa | 0…2000 Pa |
| 0…250 Pa | 0…500 Pa | Pa 0…2500 Pa |
| -25…+25 Pa | 0…1000 Pa | Pa 0…3000 Pa |
| -50…+50 Pa | 0…1500 Pa | Pa 0…4000 Pa |
| -100…+100 Pa | 0…2000 pa | Pa 0…5000 Pa |
| -150…+150 Pa | 0…2500 Pa | 0…7000 Pa |
