How Does a Vortex Flow Meter Work?

A vortex flow meter is a highly reliable and versatile device commonly used in various industries, such as oil and gas, chemical processing, and power generation. It measures the flow rate of liquids, gases, or steam using the vortex shedding principle, discovered by physicist Theodore von Kármán. When a fluid flows past an obstruction (called a bluff body), alternating vortices are created downstream. The frequency of these vortices is directly proportional to the velocity of the fluid, making it possible to accurately calculate the flow rate.

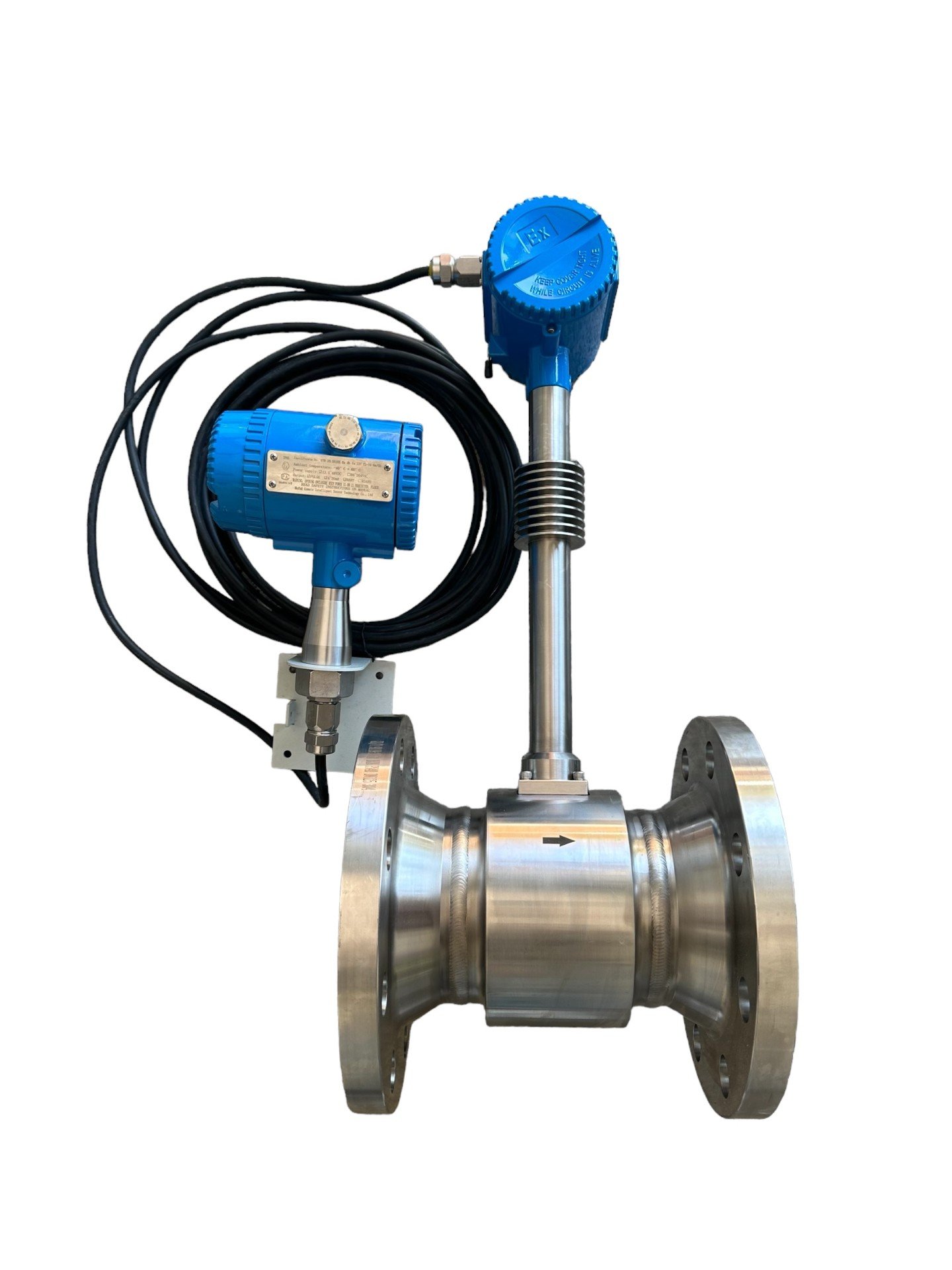

how vortex flowmeter workThe Vortex Shedding Principle

The key operating principle of the vortex flow meter is the von Kármán effect, where alternating vortices are created when a fluid flows around a bluff body. These vortices cause pressure changes, and a sensor within the meter detects the vortex frequency, which correlates directly to the fluid's velocity. By measuring this frequency and knowing the pipe’s cross-sectional area, the volumetric flow rate can be determined.

The Role of the Bluff Body

The bluff body, also called a shedder bar, is the obstruction responsible for creating the vortices. The shape and size of the bluff body can vary, with common shapes being square, trapezoidal, or T-shaped. These shapes influence how vortices form and help ensure that flow measurements remain consistent across different conditions.

The design of the bluff body is critical. It needs to be large enough so that the entire flow interacts with it, causing vortices across a wide range of flow rates. The correct installation of the bluff body, ensuring minimal disturbances both upstream and downstream, is crucial for accurate measurements.

Wirking Sensors in Vortex Flow Meters

Vortex flow meters use various types of sensors to detect the vortex frequency, which corresponds to the flow rate. Common sensor technologies include:

  • Piezoelectric Sensors: These detect mechanical stress caused by the vortices, converting it into an electrical signal.
  • Capacitive Sensors: These measure changes in capacitance caused by the vortex shedding, offering another means to calculate flow rate.
  • Ultrasonic Sensors: These sensors emit ultrasonic waves through the fluid, and changes in wave speed due to vortices are used to determine the flow rate.

    Advantages of Vortex Flow Meters

    Vortex flow meters provide a range of benefits, making them a popular choice for numerous applications:

    • No Moving Parts: One of the primary advantages is that vortex meters have no moving parts, reducing maintenance requirements and increasing reliability over time.
    • High Accuracy: Vortex meters offer excellent accuracy, often within ±1% for liquids and gases and ±2% for steam, which makes them suitable for precise flow measurements.
    • Versatile Applications: Vortex meters can be used for various fluids, including:
      • Liquids: Ideal for measuring water, oil, and other fluids.
      • Gases: Suitable for air, natural gas, and other gases.
      • Steam: Used in steam-related applications, such as in power plants or heating systems.
    • Low Sensitivity to Process Variations: These meters maintain accuracy even when process conditions like temperature or pressure change, making them highly adaptable.

    Common Applications of Vortex Flow Meters

    Due to their versatility and accuracy, vortex flow meters are widely used in various industries:

    • Oil and Gas: Monitoring the flow of natural gas or oil through pipelines.
    • Chemical Processing: Regulating the flow of chemicals during production processes.
    • Power Generation: Managing steam systems to improve energy efficiency and reduce waste.
    • Water Treatment: Measuring water flow in both municipal and industrial treatment plants.

    Limitations of Vortex Flow Meters

    While vortex flow meters offer many benefits, they do have some limitations:

    • Unsuitable for Low Flow Rates: At low velocities, the vortices may not form strongly enough to generate a detectable signal, leading to inaccuracies.
    • Debris Sensitivity: Vortex meters work best with clean fluids. Any debris in the fluid can interfere with vortex formation, affecting the accuracy of the flow measurement.

    vortex flow meterInstallation Considerations for Vortex Flow Meters

    Proper installation is essential for ensuring the accuracy of vortex flow meters. Key considerations include:

    • Straight Pipe Length: Vortex flow meters require a certain length of straight pipe both upstream and downstream of the meter to stabilize the flow and minimize disturbances. This is crucial for ensuring accurate measurements.
    • Minimizing Pipe Vibration: Excessive pipe vibration can affect the sensors in the meter, leading to inaccurate readings. Proper support for the piping can help reduce vibration and ensure stable readings.

    Conclusion

    Vortex flow meters are an excellent choice for measuring the flow of liquids, gases, and steam in various industrial applications. Their lack of moving parts, high accuracy, and low sensitivity to process variations make them a reliable and low-maintenance solution. However, they are not suitable for all applications, particularly those involving low flow rates or fluids with debris. Proper installation is key to maximizing the performance of vortex flow meters, ensuring accurate and consistent results.
