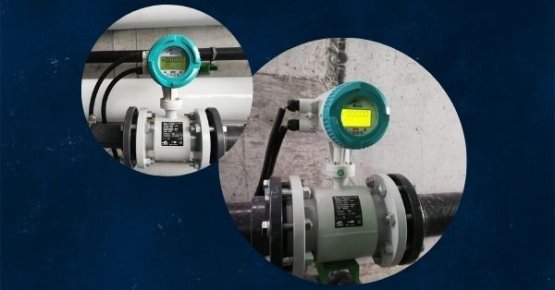

Electromagnetic Flow Meters | Magnetic Flow Meters | Istanbul

The Ultimate Guide to Understanding Electromagnetic Flow Meters: How They Work and Why They're Essential for Accurate Flow Measurement

Are you puzzled by the inner workings of electromagnetic flow meters? In this comprehensive guide, we will unlock the mysteries behind these essential devices used for accurate flow measurement. Whether you're a seasoned professional or just getting started in the world of flow measurement, this article will provide you with a complete understanding of electromagnetic flow meters and why they are so crucial.

Electromagnetic flow meters, also known as magmeters, use Faraday's law of electromagnetic induction to measure the flow rate of conductive fluids. By applying a magnetic field to the fluid and measuring the induced voltage, these meters provide highly accurate flow readings in a wide range of industries, from water and wastewater management to food and beverage production.

Join us as we delve into the working principles of electromagnetic flow meters, exploring their key components and the benefits they offer compared to other flow measurement technologies. Discover the versatility and reliability of magmeters, and learn why they are considered a go-to solution for accurate flow measurement across various applications.

Get ready to unlock the secrets of electromagnetic flow meters and enhance your understanding of flow measurement in this ultimate guide.

How do electromagnetic flow meters work

Electromagnetic flow meters operate based on Faraday's law of electromagnetic induction, which states that a voltage is induced across a conductor when it moves through a magnetic field. In the case of electromagnetic flow meters, the conductor is the conductive fluid flowing through the meter, and the magnetic field is created by electromagnets or permanent magnets.

The flow meter consists of a flow tube, which is lined with a non-conductive material to prevent corrosion and provide insulation, and two sets of electrodes positioned opposite each other. When the fluid flows through the flow tube, a magnetic field is applied perpendicular to the direction of flow. As the conductive fluid flows across the magnetic field lines, a voltage is induced in the fluid, which is then measured by the electrodes.

The induced voltage is directly proportional to the flow velocity of the fluid, allowing the flow meter to accurately determine the flow rate. By measuring the voltage at multiple points across the flow tube, the flow meter can also provide information about the flow profile, detecting any disturbances or irregularities in the flow.

Electromagnetic flow meters are capable of measuring both forward and reverse flow, making them suitable for applications where the flow direction may change. Additionally, they can measure flow in both clean and dirty fluids, as long as the fluid is conductive. This makes them versatile and widely applicable in various industries.

Advantages of using electromagnetic flow meters

Electromagnetic flow meters offer several advantages over other flow measurement technologies, making them a popular choice for accurate flow measurement in many industries. Here are some key advantages of using electromagnetic flow meters:

Wide range of applications: Electromagnetic flow meters can be used to measure the flow of conductive fluids in a wide range of industries, including water and wastewater management, chemical processing, pharmaceuticals, food and beverage production, and more. Their versatility makes them suitable for various fluid types and flow rates.
High accuracy and repeatability: Electromagnetic flow meters provide highly accurate flow readings, typically with an accuracy of ±0.5% to ±1% of the measured value. Their accuracy remains consistent over a long period of time, ensuring reliable and repeatable flow measurement.
No moving parts: Unlike some other flow measurement technologies, electromagnetic flow meters have no moving parts, which reduces the risk of mechanical wear and tear. This results in minimal maintenance requirements and ensures long-term reliability.
Minimal pressure loss: Electromagnetic flow meters have a negligible impact on the flow pressure, causing minimal pressure loss in the system. This is particularly important in applications where maintaining a certain pressure is crucial.
Wide turndown ratio: The turndown ratio of a flow meter refers to its ability to accurately measure a wide range of flow rates. Electromagnetic flow meters have a high turndown ratio, typically ranging from 50:1 to 100:1, allowing for accurate measurement across a broad flow range.
Insensitive to fluid properties: Electromagnetic flow meters are not affected by changes in fluid density, viscosity, temperature, or pressure. This makes them suitable for measuring a wide range of fluids, including corrosive and abrasive liquids.

Overall, electromagnetic flow meters offer exceptional accuracy, reliability, and versatility, making them a go-to solution for accurate flow measurement in various industries.

Applications of electromagnetic flow meters

The versatility of electromagnetic flow meters allows for their application in a wide range of industries and fluid types. Here are some common applications where electromagnetic flow meters are widely used:

Water and wastewater management: Electromagnetic flow meters are extensively used in water treatment plants, wastewater treatment facilities, and distribution systems to measure the flow of water and wastewater. Accurate flow measurement is crucial for efficient water management, ensuring proper allocation, billing, and monitoring of water usage.
Chemical processing: In chemical processing plants, electromagnetic flow meters are used to measure the flow of various chemicals, acids, and corrosive liquids. Their resistance to chemical corrosion and ability to accurately measure conductive fluids make them ideal for such applications.
Food and beverage production: Electromagnetic flow meters play a vital role in the food and beverage industry, where accurate flow measurement is essential for quality control and production efficiency. They are used to measure the flow of ingredients, such as water, milk, juices, and other liquids, ensuring precise and consistent quantity control.
Pharmaceutical manufacturing: In pharmaceutical manufacturing, electromagnetic flow meters are used to measure the flow of liquids, such as solvents, acids, and bases, during the production process. Accurate flow measurement is crucial for maintaining strict quality standards and ensuring precise dosage control.
Pulp and paper industry: Electromagnetic flow meters are widely employed in the pulp and paper industry to measure the flow of chemicals, pulp suspensions, and wastewater. They provide accurate measurements even in the presence of fibers, solids, or other impurities in the flowing medium.
Mining and mineral processing: In mining and mineral processing operations, electromagnetic flow meters are used to measure the flow of slurry, which is a mixture of water and solid particles. Their ability to handle high solid content and resist abrasion makes them suitable for such challenging applications.

These are just a few examples of the numerous applications where electromagnetic flow meters are utilized. Their versatility and accuracy make them an essential tool for flow measurement across various industries.

How do Electromagnetic Flow Meters Work

Electromagnetic flow meters are based on Faraday's law of electromagnetic induction, which states that a voltage is induced in a conductor moving through a magnetic field. In the case of magmeters, the conductor is the conductive fluid flowing through a pipe, and the magnetic field is generated by coils located outside the pipe.

When the fluid flows through the pipe, the magnetic field induces a voltage proportional to the velocity of the fluid. This induced voltage is then measured by electrodes placed on the inner surface of the pipe. The electrodes pick up the voltage signal and transmit it to the flow meter's electronics for processing.

One of the key advantages of electromagnetic flow meters is their ability to measure the flow rate of conductive fluids, regardless of their composition or viscosity. Since the measurement is based on the fluid's conductivity and velocity, magmeters can accurately measure the flow of liquids such as water, chemicals, slurry, and even corrosive fluids.

Electromagnetic flow meters are also known for their wide turndown ratio, which refers to the range of flow rates they can accurately measure. With a turndown ratio typically ranging from 100:1 to 1000:1, magmeters can accurately measure both high and low flow rates, making them suitable for a variety of applications.
