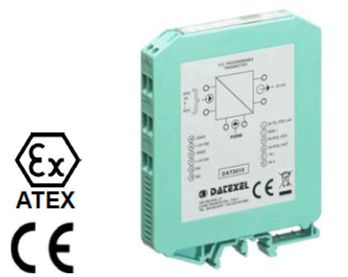

DAT 2015 IS Ex-Proof Signal Inverter

Dat 2015 IS Ex- Proof Signal Transducer works at industial systems and heavy conditions and are a signal convert products that thermocuople, RTD, mV, resistance, potantiometer signals convert into 4-20mA. Input signal choose and signal range can be adjustabled from computer.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Product Code: DAT 2015 IS (Made in Italya)

• Zone: Zone 0

• Protection Mod: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX

• Input Signal: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. You see for values to data sheet Potentiometer, Resistance, RTD, mV, Ni100, Ni1000

• Output Signal: 4-20mA,

• Supply Voltage: 10 to 30 Vdc.

• Withstand Temperature: Operative- 4°F +158°F - 20°C +70°C

• Storage Temperature: - 40°F +185°F - 40°C +85°C.

• Humidity: (none Condensing) 0-90%.
• Housing: Material Self-extinguishing.

• Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.

• Weight: 3 oz 90 g.

• EMC.: For industrial environments.
• Immunity: EN 61000-6-2.
• Emission: EN 61000-6-4.

• Configuration: Computer
