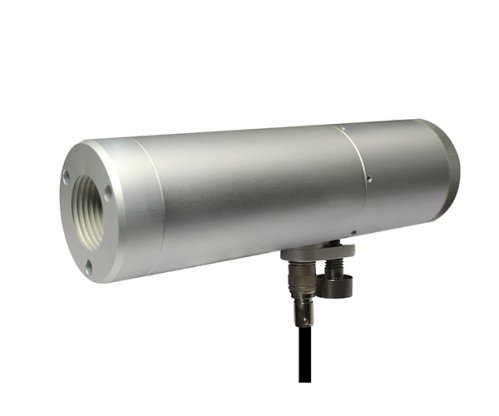

Infrared Thermometer IR-VIEW

Explore the Exceptional Features of IR-View Infrared Thermometer:

The IR-View non-contact infrared thermometer is meticulously designed to deliver precise temperature measurements with ease. By harnessing the power of infrared technology, it accurately captures the emitted infrared wavelength from your target and converts it into a standard current signal output (4~20mA) or an RS-485 communication signal output.

One of its standout features is the view lens, which provides remarkable clarity when focusing on high-temperature objects, even in situations where the spot might be challenging to see. With an impressive temperature measurement range, it can precisely gauge temperatures from 800℃ to a maximum of 2400℃, all while maintaining an exceptional distance-to-spot ratio of 200:1.

Moreover, the IR-View thermometer offers the convenience of adjustable emissivity, ranging from 0.75 to 1.25, in its 2-color mode. This feature allows you to fine-tune your measurements and achieve the utmost accuracy for your specific applications.

Experience the unparalleled precision and versatility of the IR-View Infrared Thermometer, making it an invaluable tool across various industries and settings.

Technical Properties:

• Measured Range: 800~2400℃
• Accuracy: ±1℃/F.S or 1℃
• Error Range: ±1%
• Field of View (Distance to Spot Ratio - D:S): 200:1
• Wavelength Range: 1.1㎛, 1.0㎛
• Sensor Type: Si (Silicon)
• Response Time: Less than 0.001 seconds
• Emissivity (One Color Mode): Adjustable from 0.10 to 0.99
• Emissivity (Two Color Mode): Adjustable from 0.75 to 1.25
• Analog Output: 4~20mA
• Communication Output: RS-485 Communication
• Relay Output: 1-step Relay Contact (High/Low)
• Power Supply: DC 12~24V (Maximum 200mA)
• Operating Temperature: 0~80℃
• Resolvable Temperature: 1℃
• Operating Relative Humidity: 5~90%
• Storage Temperature: -30~85℃
• International Protection Rating: IP65, NEMA 4
• External Material: Aluminum
• Weight: 960 grams
• Cable Length: 3 meters (other options available)
