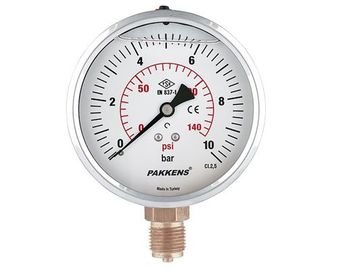

Liquid Filled Manometer

Manometers and Pressure Meters

It is used in situations with vibration to detect the pressure of liquids and gases that don't corrode copper alloys.
Corrosive conditions can employ stainless steel (AISI 316L) or monel 400.
It frequently employs the mining, petroleum-chemical, machinery manufacturing, and hydraulic systems industries.

Technical Properties:

  • Filling Liquid: Glycerin or Silicone Oil
  • Body Diameters Ø100 mm, Ø160 mm
  • Pressure Range 0.6 / 1000 bar
  • Accuracy ± \1.0% (CL. 1.0)
  • Fluid Temperature +60 °C Optional: +100 °C
  • Working Pressure Full Scale Value
  • Conformity EN837/1
  • Protection Class IP65
  • PED Directive 97/23/EC
  • ATEX 94/9/EC Directive (Optional)
