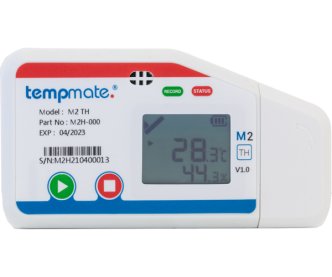

Tempmate Multi-Use Temperature and Humidity Datalogger M2 TH

High-Quality Datalogger For Humidity and Temperature

Superior and Versatile Data Logger

  • Digital sensors with high accuracy have an accuracy of 0.3°C and 3% rH for humidity. The information it gathers is reliable.
  • Additional probes are needed for measurements that range from -80 to +200 degrees Celsius or for measuring distance.
  • With the on-board offline configurator, reconfiguring is simple. There is no need for installation, extra software, or an internet connection.
  • Meets all the strictest criteria for quality: En12830-compliant 6-point validation certificate that produces a thorough PDF and CSV report.

Usage of Tempmate M2 T

How to manage your transportation in 4 easy stages

  • Start the Tempmate M2
  • Temperature and humidity records
  • Get reports in CSV and PDF.
  • Upload reports for analysis to the cloud.
    Launch a fresh campaign.

You can choose between a high-precision temperature sensor and an additional relative humidity sensor with the M2. Additionally, you can select from 3 different external sensors to expand the tempmate M2's measuring range to -80°C and +200°C. This gadget may be utilized in stationary and mobile applications because of the unique holder, allowing you to dependably monitor your items wherever they are.

The tempmate M2 gives you a variety of options for quickly determining whether your products have been subjected to unfavorable physical and environmental impacts. You can identify risks early by setting up to six alert limit settings that are customized for your goods. The integrated LCD displays comprehensive information about the current conditions, while the two LEDs give you immediate information about the state of your goods.

When integrating data loggers into your daily operations, the purchase price alone is frequently not the only factor to take into account. The tempmate M2 doesn't need any extras, and if you need to, you may setup it yourself using free software. You won't pay any licensing fees or other unforeseen expenses if you choose this solution. Simple handling helps you save time and money on staff.

The tempmate M2 delivers superior sensor technology in addition to a backup record that guards against losing your crucial data. You get a gadget that reliably records your data and safeguards it from loss and misuse when password security is added. The tempmate M2 is a reliable companion for your items and a guardian of your data, thanks to the eco-friendly hard case.

The tempmate M2 is a constant friend when it comes to monitoring your goods, thanks to the replaceable battery. The tempmate M2's regular CR2450 button cell battery is readily changed out for a new one by simply turning the cap on the back of the device. This is advantageous for the environment as well as your finances because you won't need to make as many replacements as before.

The Tempmate M2 only requires one button to function; the rest practically takes care of itself. As soon as the device is stopped, a PDF or CSV file containing your crucial data is instantly generated. Utilizing the built-in USB port, it may be simply analyzed and archived. The free tempbase 2 software and, in particular, the onboard HTML configurator* make it incredibly simple to program the tempmate M2 and quickly adjust it to your constantly changing needs.

Technical Properties:

  • Temperature Sensor: HQ Digital Temperature sensor (internal and external optional)
  • Temperature Range: -30°C to +70°C (–40°C to +90°C with ext. T Sensor)
    (-80°C to +200°C with ext. PT100 Sensor)
  • Temperature Accuracy: ±0.3°C (at –20°C to + 40°C, other 0.5°C)
  • Temperature Resolution: 0.1°C
  • Humidity Sensor: HQ Digital Temperature/rel. Humidity sensor (internal and external optional)
  • Humidity Range: 0%rH to 100%rH
  • Humidity Accuracy: ±3%rH (20 to 80%rH), 5% others (at 25°C)
  • Humidity Resolutio: 0.1%rH
  • Data Storage: 60,000 values
  • Display: Big Multifunction LCD
  • Start Setting: Manually by pressing button, by software or timed
  • Recording Time: Up to 6 months
  • Interval: 10sec. up to 11h 59min. (default 10 min.)
  • Alarm Settings: up to 6 points temperature and 2 Points humidity customizable
  • Alarm Type: Single alarm or cumulative
  • Battery: CR2450 / replaceable by customer
  • Dimensions: 100 x 53 x 12 mm
  • Weight: 54g
  • Protection Class: IP65
  • Connection Interface: USB 2.0, A-Type
  • Conformity: EN 12830, CE, RoHS
  • Software: PDF or CSV reader or tempbase 2 software / free download
  • Interface to PC: integrated USB port
  • Reprogrammable: Yes, with internal HTML tool* or optional tempbase 2 Software
  • Automatic Reporting: PDF & CSV
