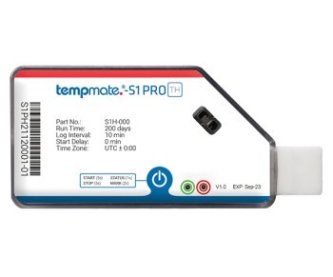

Tempmate Single Use Temperature and Humidity Datalogger S1 PRO TH

Single Use Temperature and Humidity Indicator Disctributor

In addition to its sturdy, food-safe housing, the Tempmate S1 PRO provides security for your items and data. In order to prevent you from losing this crucial proof, we have directly digitally stored the validation certificate on the device.

The Tempmate S1 PRO just requires one button for operation; the rest happens practically automatically. S1 is designed to make your life easier by automatically producing a PDF & CSV with your crucial data after turning off the device. Through the integrated USB link, they can be quickly analyzed and archived. When using the Tempmate S1 PRO, additional accessories are not required.

Your tempmate S1 PRO ought to constantly be customized to your particular needs. As a result, you can customize the alert thresholds, modes, measuring intervals, and much more to suit your requirements. Using the built-in offline configurator, you may do this extremely flexible and especially for each given vehicle. You only need the logger and a PC with a USB connection if you don't want to use the internet or further installations.

Your tempmate S1 PRO will be delivering to you already set up and prepared for usage. Because of our extensive knowledge, we have selected a basic configuration that works with numerous transports and spares you extra work while using the device. Additionally, our tempmate.®-S1 PRO does not require a labeling for dangerous items. Pushing a button is all that stands between you and a conveyance that is consistently monitored.

Tempmate S1 PRO is created to be small and lightweight, allowing you the ability to install it wherever monitoring is critical and necessary to you. This includes a package, pallet, or container. There is seldom a spot where this gadget cannot be mounted with the aid of the adhesive mounting that is already connected.

These data loggers aim to be a trustworthy partner in your supply chain; thus, they only use premium sensors that will provide excellent accuracy for the duration of the device's life. The tempmate S1 PRO's sensors are all fitted such that extraneous parts cannot affect the data you measure. Experienced facts mean that inaccurate measuring findings are no longer a concern.

Features:

  • The built-in USB connection permits examination without the need for extra tools.
  • Pre-installed offline configurator configuration
  • Using just one button, simple operations and status queries
  • Before use, preconfigured and reprogrammable
  • No other software is needed.
  • Easy workflow is ensured by automatic PDF and CSV creation.
  • Temperature or temperature and relative humidity devices are optional.
  • Simple status indicator is provided by colored LEDs
  • High-quality digital sensors provide accurate recording.

Technical Properties:

  • Recording Options Single-Use
  • Dimension [mm] 86 x 40 x 8.7mm
  • Weight [g] 15.2g
  • Casing Hardcase with removable cap
  • Battery CR2450 lithium metal button cell battery
  • Connection Interface USB 2.0, A-Type (integrated)
  • Protection Class IP64
  • Shelf Life 24 months
  • Temperature Range –30 °C to 70 °C
  • Temperature Accuracy ±0.3°C (-30 to 70°C)
  • Temperature Resolution 0.1 °C
  • Humidity Range 0 - 100 %rH
  • Humidity Accuracy ±3%rH (0 to 100%rH)
  • Humidity Resolution 1 %rH
  • Memory Capacity (measurements) 32.000 values (each, T & TH)
  • Run Time (Logging Interval) Up to 200 days (10 min.) = Standard Model, Other models
    only on request
  • Data Export PDF & CSV
  • Alarm Configuration Up to 6 points temperature and 6 points humidity, customizable
  • Startup Mode Button (optional preprogrammed scheduled start)
  • Stop Mode Button (optional preprogrammed scheduled stop)
  • Software PDF or CSV reader
  • Reprogrammable Inbuilt offline configurator tool
  • Validation Certificate Available as PDF on memory of the device
  • Conformity CE, EN12830, RoHS, FCC, RTC DO-160
  • Log Interval User defined: 1 min. to 1440 min. (10 min. as standard
    setting preconfigured)
  • Mark Readings Option to mark up to 10 readings
  • Connectivity Through USB port
  • Alarm Type Single / Cumulative
  • Case Material Food Grade Plastic (Polycarbonate)
  • Packaging Hardcase with removable USB-cap
