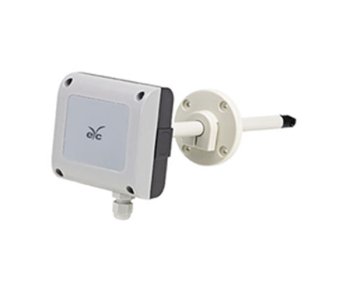

FTS14 Duct Type Air Speed Transmitter

Best Air Velocity Transmitter For Measuring Air Flow

  • Temperature Compensation,
  • Linear Adjustment Function
  • Analog output setting with dip switch
  • Offset function setting with button

Technical Properties:

  • Brand / Origin: eYc-Tech / Taiwan
  • Product Type: FTS14
  • Inlet Type Air Velocity: Thermal mass flow sensor
  • Air Velocity Measurement Range: 20 m/s
  • Air Speed Min. Measurement Range: 0.2 m/s
  • Accuracy (+25°C): ±5% FS (non-linear error, hysteresis error, repeatability error)
  • Thermal Sensitivity Temperature. Error: 0.2%/°C
  • Analog Output: 4 ... 20 mA / 0 ... 10 VDC
  • Signal Connection: 3-wire
  • Load Resistance: ≦ 500Ω (current output) / ≧ 10KΩ (voltage output)
  • Surge Protection DC : <45V ; AC : <40V
  • Power supply: 8 ... 35VDC / 12 ... 30VAC
  • Operating Temperature: 0...50 °C
  • Protection Class: IP54
