Thermal Air Speed Transmitter EYC FTS84/85

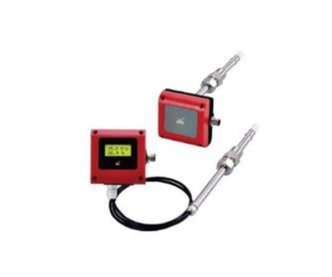

Digital Thermo Air Velocity Transmitter

The Eyc FTS84/85 air speed transmitter is a product designed for high-volume applications. Due to its small design, it can be installed in almost all applications. It provides high sensitivity and stable measurement due to the use of high-quality film sensors based on the hot film anemometer principle.

Technical Properties:

  • Brand / Model: FTS84/85
  • Sensor: Thermal mass flow sensor
  • Analog Output: 0-20 mA / 4-20 mA / 0-1 VDC / 0-5 VDC / 0-10 VDC
  • Digital Output: RS485 modbus RTU
  • Air Velocity Measurement Range: 1 m/s; 2 m/s ; 5m/s ; 10m/s；20m/s；40m/s; 60m/s
  • Operating Range: 95%RH
  • Operating Temperature: 0-50°C
  • Temperature Accuracy: ±0.3°C
  • Case Material: PC fire resistant (UL94V-2)
  • Protection Class: IP65
  • Signal Connection: 3-wire
  • Display: LCD Module
  • Supply Voltage: 8-35VDC & 12-30VA
