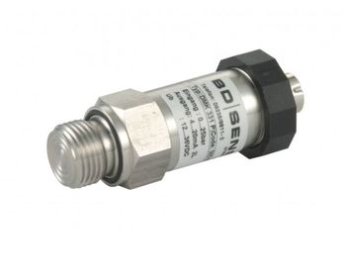

Flush Diaphragm Pressure Transmitter

Diaphragm Pressure Transmitter ; diaphragm is found at mechanic connection point. Applied pressure to the diaphragm converts into electrical signal and measure to pressure amount. Due to teir diaphragm are used in many areas such as waste water, dirty water, dense liquid, and air pressure systems that contain dust and so on.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Brand/Model : Mesens / MPS 530

• Measured Range : 100mBAR .......400BAR

• Precision : 0,5%

• Wet Parts : 316 Stainless Steel

• Temperature Range: -40....+125° C

• Electrically Output: 4-20mA 2 Wired, 0,5 volt, 0 – 10 volt

• Electrical Connection : Socket DIN 43650A (you ask for others)

• Protection Class : IP65, (IP 67 Optional)

• Mechanical Connections : ½" , ¾", 1" G / NPT Flush Diaphragm

• Sensor Technology : Piezoresistive Silicon
