Dimens Hygienic Diaphragm Pressure Transmitter DMS400

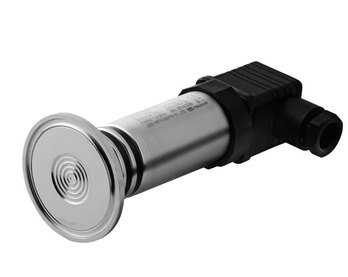

Hygienic Diaphragm Pressure Sensor

Diaphragm Pressure transmitters are devices that measure the amount of pressure by converting the pressure applied to the diaphragm at the mechanical connection point into an electrical signal. Because they have a diaphragm, they are used in many places such as dirty and waste water, dense liquids, liquids containing particles, and air pressure systems containing dust.

Technical Properties:

  • Brand / Model: Dimens DMS400
  • Pressure Range: -1…0 ~ 100 mBar…..25 Bar
  • Electrical Output: 4~20mA, 0~10V, 0~5V, 0.5~4.5V R/M
  • Supply Voltage: 12~30VDC
  • Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
  • Sensitivity: 0.5%TS (0.2% opt)
  • Without hysteresis: 0.1%TS
  • Repeatability: 0.1%TS
  • Response Time: ≤1ms (up to 90% TS)
  • Maximum Pressure: 3xMax. scala
  • Process Temperature: -30℃~125℃ (-30 ~150 ℃, -30 ~250 ℃ optional)
  • Ambient temperature: -20℃~85℃
  • Protection: IP65
  • Diaphragm Material: AISI 316L
  • Body Material: AISI316
  • Mechanical Connection: Hygienic DN50 Clamp
  • Exproof Protection: Intrinsically safe explosion-proof Exia Ⅱ CT6 (only for 4~20mA)
