Dimens Diaphragm Pressure Transmitter DMS300

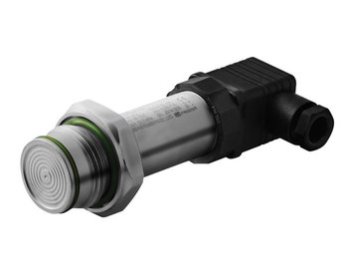

Flush Dimens Diaphragm Pressure Transmitter DMS300

Diaphragm pressure transmitters are hygienic pressure meters designed for the food and pharmaceutical industries. The flush diaphragm pressure transmitter is suitable for cleaning and sterilization. Smart, compact design: wet parts are made of high-quality 316L stainless steel. Diaphragm pressure gauges have hygiene standards in accordance with international standards. Various types of international standard process connections are also available.

Technical Properties:

  • Brand / Model: Dimens DMS300
  • Pressure Range: -1…0 ~ 100 mBar…..100 Bar
  • Electrical Output: 4~20mA, 0~10V, 0~5V, 0.5~4.5V R/M
  • Supply Voltage: 12~30VDC
  • Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
  • Sensitivity: 0.5%TS
  • Without hysteresis: 0.1%TS
  • Repeatability: 0.1%TS
  • Response Time: ≤1ms (up to 90% TS)
  • Maximum Pressure: X2
  • Process Temperature: -40℃~85℃ (-40℃~150℃, -40℃~250℃ optional)
  • Ambient temperature: -20℃~85℃
  • Protection: IP65
  • Diaphragm Material: AISI 316L
  • Body Material: AISI316
  • Mechanical Connection: G1/2”, NPT 1/2”, G1” M20x1.5, ZG1/2” M30X1.5
  • Exproof Protection: Exia Ⅱ CT6
