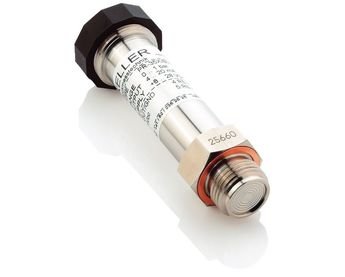

Keller Flush Diaphragm Pressure Transmitter

KELLER Flush Diaphragm Pressure Transmitter is used in industrial areas. These are products that measure the pressure of the system and convert the measured pressure into an electrical signal.

Application areas:

• Pressure meters
• Purification systems
• Food industry
• Pharmaceutical industry
• Chemical Industry
• Textile
• It is used in many places such as machinery

Technical Properties

• Brand, Model: Keller, PR-25Y
• Pressure Measurement Range: 0.2...1000 bar
• Mechanical Connection Dimension: G1/2" - G 3/4''
• Electrical Output: 0-10 Volt, 0-20 mA, 4-20 mA
• Supply: 8 ... 28 VDC
• Sensor Technology: Piezoresistive Transmitter
• Diaphragm Material. : AISI316L
• Body Material. : AISI304
• Temperature Range: -40 ̊C ...80 ̊C
• Stability: 0.1%FS/year, max. 0.2%FS/yr
• Sensitivity: 0.05%
• Protection: IP65
