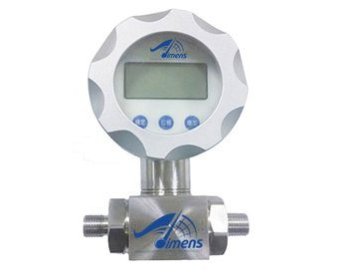

Differential Pressure Gauge DMS620

Technical Properties:

• Pressure range: 10kPa, 20kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa
• Pressure Type: Differential pressure
• Overpressure: 200% F.S.
• Output signal: None, or 4-20mA + 2xPNP Switch
• Accuracy: ±0.5% F.S.
• Power: 9V alkaline battery or 16-36 Volt DC
• Operating temperature: -20 C - 85 C
• Ambient temperature: -20 C - 85 C
• Storage degree: -40 C - 125 C
• Compensated temperature: 0ºC - 60ºC (10kPa - 100kPa) | -10 C - 70 C (100kPa - 2.5MPa)
• Zero temperature. coefficient: ±1.5% F.S. max. (@ -20 C - 85 C)
• December temperature. coefficient: ±1.5% F.S. max. (@ -20 C - 85 C)
• Mechanical vibration: 20g (20 - 5000Hz)
• Shock: 100 g (11 ms)
• Insulation: 200MΩ / 250VDC
• Response time: ≤1ms (up to 90% F.S.)
• Long-term stability: ≤ 0.2% F.S.S/year
• Protection: IP65
• Mechanical Connection: 1/2”, 1/4”
• Wet Parts: 316L
• Static pressure effect: ±0.5% F.S. (@1MPa)
