Differential Pressure Transmitter DMS610

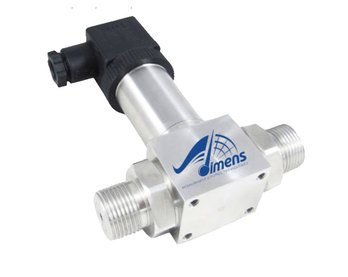

Differencial Pressure Transducers at RST

The Differential Pressure Transmitter Device is a high-performance differential pressure transmitter with cutting-edge technology that is recognized internationally. It was painstakingly constructed using the most cutting-edge sensor and patent encapsulation technologies available.

  • The differential pressure transmitter is the original patented fully sealed, completely isolated monosilicon pressure sensor.
  • Thanks to its double diaphragm overload protection structure, it can easily withstand high overload pressures.
  • ASIC and SMT signal sending module.
  • You can quickly make settings with the user-friendly configuration menu.
  • Multiple temperature and linearity compensation to increase accuracy.
  • High strength metal electrical protection housing to ensure long performance life.
  • Robust and superior stainless steel process flange.
  • Strong protection with high static pressure and high overload.

Technical Properties:

  • Brand / Model: Dimens DMS610
  • Measurement Range: 0 ~ 100mBar……… 25 Bar
  • Static Pressure:20 Bar (Max.)
  • Pressure reference: Differential pressure
  • Signal Output Current: 4 ~ 20mA (16 ~ 36VDC)
  • Signal Output Voltage:1 ~ 5V, 0 ~ 5V ( 12 ~ 36VDC )
  • Accuracy: 0.5% FS (typical)
  • Response Time: 1 ms (up to 90% FS)
  • Ambient temperature: -10℃~70℃
  • Fluid Temperature: -10℃~70℃
  • Storage Temperature: -40 ℃ ~ 125 ℃
  • Insulation resistance: 200MΩ / 250VDC
  • Shock resistance: 100 g (11 ms)
  • Protection: IP65
  • Material: 304
  • Max. Number of areas mounting torque: 25Nm
  • Mechanical Connection: 1/4”, 1/2”, M20x1.5
