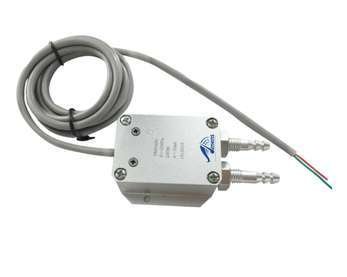

Differential Pressure Transmitter

DMS 600 series differential pressure transmitter is designed to measure and control the differential pressures of liquids and gases. The differential pressure sensor shows high performance and stability at high temperatures of 125°C. Since its wet parts are stainless steel, it can be used in many aggressive liquids. Differential pressure transmitter can be used in pump testing, filter fouling, level measurements of pressure tanks, leakage tests of lines, contamination of lines and many other processes.

Technical Properties:

• Brand Model: Dimens / DMS600
• Sensor Technology: Piezoresistive Silicone
• Diaphragm Material: AISI316L
• Body Material: AISI304
• Electrical Connection: DIN43650A
• Mechanical Connection: G 1/2"
• Withstand Pressure: 2xMax.Measurement
• Temperature: -40°C...125°C
• Sensitivity: 0.5%
• Protection: IP65
• Output: 4-20 mA, 2 wires
• Supply: 10...32VDC
• Zero-Max. Setting: Yes
