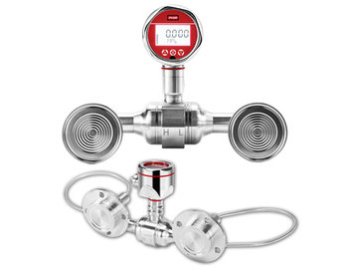

Industrial Type Differential Pressure Transmitter Dimens DMS858-NSF

Dimens Differential Pressure Supplier For Industrial Purposes

DMS858-NSF The best hygienic differential pressure transmitter, with the most cutting-edge silicone pressure sensor technology and patent encapsulating procedure, is the monosilicon diaphragm differential pressure transmitter. The DMS858-NSF has a full isolation sealing structure to eliminate the effects of moisture, making it appropriate for extremely wet cleaning situations. Specifically created for extreme pressure overload conditions, the double diaphragm overload protection structure achieves the maximal overload pressure of 42MPa.

  • Fully welded construction to maximize leak point reduction.
  • It has the highest hygiene standards and does not contain any hygiene residue.
  • Based on the central diaphragm principle, the overload protection structure withstands the highest overload pressure up to 42MPa.
  • It has high overload pressure and low pressure measuring range with high accuracy.
  • Hygiene design meeting standard FDA and GMP.
  • It complies with the highest Hygiene standard with its surface material and roughness.

Technical Properties:

  • Brand / Model: Dimens / DMS858-NSF
  • Pressure type: differential pressure
  • Range: 400mBar ~ 10Bar
  • Output signal: 4-20mA, 4-20mA + HART
  • Reference accuracy: ±0.1% URL, ±0.2% URL, ±0.5% URL
