Industrial Type Differential Pressure Transmitter Dimens DMS858-DST -A

Differential Pressure Tranmitter Supplier | Measurement Devices

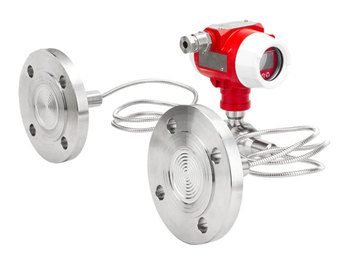

The DMS503-DST-DSTosilicon Differential Pressure Transmitter is a high-performance differential pressure transmitter with international leading technology, the device of which is meticulously designed using the world's most advanced sensor technology and patent encapsulation technology. The differential pressure transmitter sensor is placed at the top of the metal body and kept away from the media interface to realize mechanical and thermal isolation. Glass sintering sensor wire realizes high-strength electrical insulation of the metal base and ensures the flexibility and transient voltage resistance protection of the electronic circuit.

  • Differential Pressure Transmitter Original patented fully sealed, fully isolated monosilicon pressure sensor.
  • Thanks to its double diaphragm overload protection structure, it can easily withstand high overload pressures.
  • ASIC and SMT signal sending module.
  • You can quickly make settings with the user-friendly Configuration menu.
  • Multiple temperature and linearity compensation to increase accuracy.
  • High strength metal electrical protection housing to ensure long performance life.
  • Robust and superior stainless steel process flange.
  • Strong protection with high static pressure and high overload.

Technical Properties:

  • Brand / Model: Dimens / DMS858-DST-A
  • Measuring range: 400 milliBar-10 Bar
  • Output signal: 4-20mA, 4~20mA HART, customer request
  • Reference accuracy: ±0.2% URL, ±0.5% URL
  • Process temperature: -40-120℃
  • Measurement medium: pressure, level, differential pressure, density, interface, flow
  • Ambient temperature: -40-120℃
  • Stability: ±0.2% URL / 5 years
  • Diaphragm material: SUS316L, Hastelloy C
  • Process connection: DN50PN10, DN80PN10, DN100PN10, Tri-Clamp 1-1/2", Tri-Clamp 2"
  • Protection class: IP67
  • Approvals: CSA, NEPSI, CE, RoHS
