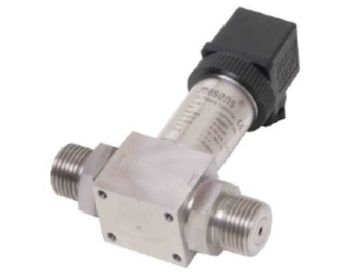

Differential Pressure Transmitter

MPS 550 series differential pressure transmitter was designed to measure and control of differential pressure of liquid and gases. Differential Pressure sensor provides high performance and stability at high temperature like 125°C. It can be used in a very aggressive liquids because of stainless steel to wet parts. Differential pressure transmitter can be used at filter pollutions, level measurement of pressure tanks, leakage tests of lines, line pollutions and many different process.

Technical Documentation
Technical Properties
  • Brand / Model : Mesens / MPS 550
  • Sensor Technology : Piezoresistive Silicon
  • Diaphragm Material : AISI316L
  • Body Material : AISI304
  • Electrical Connection : DIN43650A
  • Mechanical Connection : G 1/2"
  • Withstand Pressure: 2xMax.Measurement
  • Temperature : -40°C...125°C
  • Precision: %0,5
  • Protection Class : IP65
  • Output: 4-20 mA, 2wired
  • Supply : 10...32VDC
  • Zero-Max. Adjustment : Available
