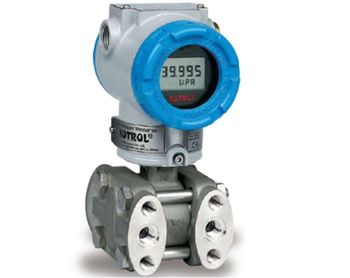

Smart Type Differential Pressure Transmitter

APT 3100 Differential Pressure Transmitter

APT 3100 Smart type pressure transmitter has a product to smart type microprocessor. Differential Pressure Transmitter has high performance, adjustable pressure and output signal. It provides of external environmental temperature of compensation automatically. Configuration of various parameters can be done with Hart Protocol.It can be used at many different applications and method such as liquid, gas, vapor, flow and level.Adjusted datas and all input datas storage at EEPROM.

  • Flexible sensors such as DP, AP, GP are available at APT 3100 differential pressure transmitter.
  • Signal Output: 4,20mA and Digital Signal HART
  • Many parameter have adjustable structure such as bottom value, top value, measurement units
  • It has self-knowledge and control function.
  • It has digital HART protocol communication.
  • It has many certificates. (such as Explosion-proof Approval & Intrinsic Safety Approval: ATEX, FM, FMCanada, GOST, KOSHA, KTL)
Technical Documentation
Technical Properties
  • Brand / Madol: Autrol / APT 3200
  • Sensor Technology: Piezoelectric
  • Diaphragm Material: AISI316L
  • Body Material: AISI316
  • Electrical Connection: 1/2"
  • Connection: 1/4"NPT-F
  • Withstand Pressure: 137 bar
  • Temperature: -40°C...125°C
  • Precision: %0,075
  • Protection Class : IP67
  • Output: 4-20 mA, 2-wire or 3-wire
  • Supply: 12...45VDC
  • Other: Scala, unit, damping time changable.
