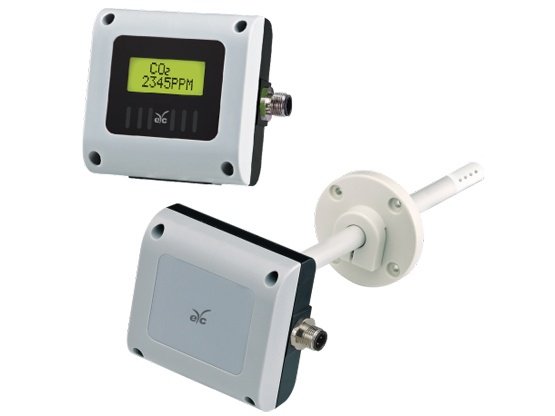

GS43/44 CO2 Transmitter

CO2 Transmitter | Flow Measuring Devices

Technical Properties:

  • Brand / Origin: eYc-Tech / Taiwan
  • Product Type: GS43/GS44
  • Sensor Type: NDIR sensor
  • CO2 measuring range: 0 ... 2000PPM, 0 ... 5000PPM, 0 ... 10000 PPM
  • Analog Output: 4 ... 20mA / 0 ... 20mA / 0 ... 10V / 0 ... 5V / 0 ... 1V
  • Digital Output: RS485 Modbus
  • Linear accuracy (at +25°C): 400 ... 2000 PPM：±40 ppm ±3% of reading/
  • Other: ±50 PPM ±3% reading
  • Signal Connection: 3-wire
  • Load Resistance: voltage output ： ≧ 10KΩ current output ： < 250 Ω
  • Response Time: GS43: <2 min. ; GS44: <6 min.
  • Power Supply: DC 12 ... 36 V & AC 24 V ± 10%
  • Protection Degree: GS43:IP54；GS44:IP64
  • Display: LCD (optional)
