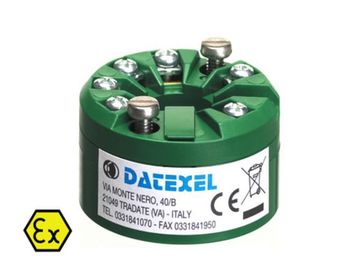

DAT 1010IS Exproof RTD Head Type Temperature Transmitter

It is self-protected temperature transmitter DAT1010IS RTD and same time accepts mV, potentiometer and resistance inputs.Input values with prodat software adjustable by computer.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Protection Mode: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX

• Zone: Zone 0

• Input Signal: RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,

• Resistance: You look to setting range from technic document.

• Output Signal: 4-20mA.

• Supply Voltage: 10 to 32 Vdc

• Withstand Temperature: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.

• Humidity: 0-90%.

• Housing: Material Self-extinguishing.

• Sizes: Diameter: 1 3/4 " Height: 15/16 " 42 mm X 24mm

• Weight: 3 oz 90 g.

• EMC. For industrial environments.

• Immunity: EN 61000-6-2.

• Emission: EN 61000-6-4.

• Adjustment: with computer

INPUT SIGNAL Self-Protected. RTD Pt100, Pt1000, Ni100, Ni1000. Resistance 0-200 0-500 0-2kohms mV -100 to 700 mV Potentiometer up to 2 k ohms

OUTPUT SIGNAL 4-20Ma
