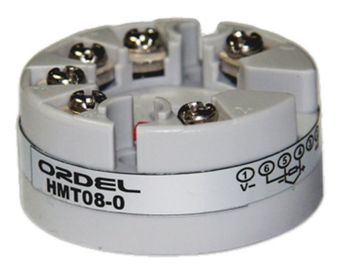

Head Type Temperature Signal Converter

HMT08 signal converts designed electronik devices that measured temperature values translate 4-20mA standard analogue signal to temperature measurement sensors by connection
Head Type Signal Converters configurable over computer.

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Supply Voltage: HMT08-0: 8..36VDC, HMT08-1: 10..36VDC
  • Analogue Input: Thermocupl: B,E,J,K,L,N,R,S,T,U
  • Resistance Thermometer: PT100
  • Analogue Input Impedence: Thermocupl: 10MΩ
  • Analogue Output: 4-20 mA,20-4 mA
  • Accuracy(+/-): Thermocupl: 16 uV +1°C
  • Resistance Thermometer: 0.3°C
  • Resolution: 16 Byte
  • Galvanik İzolasyon: %0.03/ Temperature Range
  • Memory: 100 year, 100.000 regeneration
  • Sampling Time: 200 ms
  • Reaction Time: 0.2 ... 120.0 s (Programmable)
  • Working Temperature: -40 .. +85°C
  • Sizes: Diameter: 45mm Height: 20mm
  • Weight: 40g
