Water Rate Measurement Transmitter in Oil

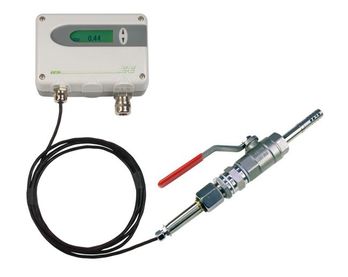

EE36 Water Rate Measurement Transmitter

EE36 was designed to measure water ratio inside oil.Because of having LOYD certificate it can be used at marine.It is very important to keep track of the rate of water in lubricating oil or insulating oil online.For example, humidity transformator isolation effects insulation properties of oils in a very large extent. Thus, is very important to constantly monitor.

Water ratio inside oil is expressed as relative value PPM or absolute value aW. PPM: Water mass inside oil / oil mass aW (between 0...1): if aW=1 refers to saturated oil ratio, if aW=0 refers to ideal oil ratio.

EE36 humidity ratio inside oil measurement transmitter is used at Marine Sector and Transformator Isolation Oils and Cooling Oils.

Technical Documentation

  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme

Technical Properties

  • Brand / Model: E+E / EE36
  • Water Activite Measurement Sensor: HC1000-400
  • Measurement Range aW: 0...1 aW
  • Measurement Range PPM: 0...100.000 ppm
  • Temperature Measurement Sensor: PT1000
  • Measurement Range: -40... +180°C
  • Output Signal: 4-20mA, 0-20mA, 0-5V, 0-10 V
  • Supply Voltage: 8 – 35 V DC
  • Measurement Prob Pressure Range: 0.01 – 20 bar
  • Precission: ±0.02aw // ±0.2°C
  • Indicator: LCD Screen (optional)
