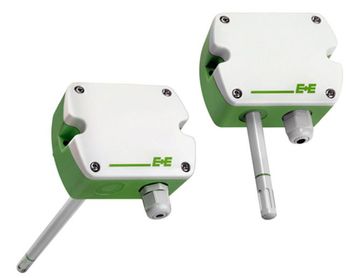

Humidity - Temperature Transmitter

EE-160 Transmitters for HVAC Application

EE 160 Humidity Temperature Transmitter is a product designed for specific HVAC applications. Wheather is an accuracy and reliable solution that has high precision for measuring moisture and temperature.It provides superior protection against contamination and moisture with specific desing protection.

EE 160 Humidity Temperature Transmitter shows resistance against dirty with HCT01 sensor which new technology.Thus, the calibration does not need a very long time.It has a high precision as EE160 ± 2.5 % RH.

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Measurement Values for Humidity
  • Sensor: E+E HCT01-00D
  • Analogue Output: 4-2mA or 0 – 10 Volt DC
  • Digital Output: RS485 Modbus RTU
  • Working Range: 10 .....95%rH
  • Humidity Precision 20 °C: ±2.5% RH
  • Measurement Values for Temperature
  • Sensor: Pt1000
  • Analogue Output: 4-20 mA or 0-10 Volt DC
  • Digital Output: RS485 Modbus RTU
  • Temperature Precision: ±0.3°C
  • Supply Voltage: 15 – 35 V DC for 0-10 vol/RS485 , 4-20mA 10 – 35 Volt DC
  • Box Material: Polycarbonate
  • Sensor Protection: Membrane Filter
  • Protection Class: IP 65
  • Working Temperature: -15...60°C
