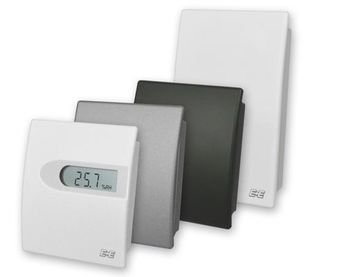

Humidity Temperature Transmitter EE10

The EE10 is designed for accurate relative humidity (RH) and temperature (T) measurement in residential and commercial HVAC (Heating, Ventilation and Air Conditioning). It has two analog outputs for measured humidity and temperature data.

Temperature Meter and Humidity MeterIt also has BACnet or Modbus RTU output. Analog RH and
Passive T output is also available. Measured data can be read locally on the optional display at active outputs.
Modbus RTU and BACnet have additional physical devices.
Absolute humidity, mixing ratio, enthalpy, freezing point temperature and water vapor partial pressure can be monitored via the MS/TP interface.

• High precision and long-term stability
• Elegant design
• Easy installation and service
• Analog, Modbus RTU or BACnet output
• Passive temperature output

Technical Properties:

• Brand / Model: E+E / EE10
• Sensor: E+E HC103
• Analog Output: 4-2mA or 0 – 10 Volt DC
• Operating Range: 0 .....95%rH Humidity, 0...50°C
• Humidity Accuracy: 20 °C: ±2.5% RH
• Sensor: PT100, Pt1000, Ni100, NTC10k
• Analog Output: 4-20 mA or 0-10 Volt DC
• Temperature Accuracy: ±0.3°C
• Supply Voltage: 15 – 40 Volt DC
• Box Material: Polycarbonate
• Filter with sensor protection membrane
• Protection Class: IP 30
• Operating temperature: "-5…55°C
