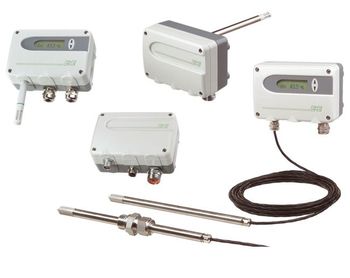

Industrial Type Humidity-Temperature Transmitter

EE31 Humidity-Temperature Transmitter

EE31 Humidity-Temperature Transmitter it is designed for industriyel applications.It provides extremely high accuracy and reliable a measurement, and is a product produced for heavy physical conditions like -40...+180°C.

The following datas are also measurements EE31 Relative Humidity and Temperature measurement excepted.

  • Absolute Humidity
  • Dew Point Temperature
  • Freezing Point Temperature
  • Specific Enthalpy
  • Wet Thermometer Temperature
  • Water Vapor Partial Pressure
  • Mixing Ratio
Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Relative Humidity
  • Humidity Sensor: E+E HC1000-400
  • Working Range: 0.....100 rH
  • Precision: -15...40°C (5...104°F) ≤90% RH ± (1.3 + 0.3%*mv) % RH
  • -15...40°C (5...104°F) >90% RH ± 2.3% RH
  • -25...70°C (-13...158°F) ± (1.4 + 1%*mv) % RH
  • -40...180°C (-40...356°F) ± (1.5 + 1.5%*mv) % RH
  • Reaction Time: < 15sec.
Temperature
  • Working Range: EE31-xAx: -40...60°C (-40...140°F)
  • EE31-xDx: -40...180°C (-40...356°F)
  • EE31-xBx: -40...80°C (-40...176°F)
  • EE31-xEx: -40...180°C (-40...356°F)
  • Signal Output: 0 – 5 V, 0 – 10 V, 4-20mA, 0 – 20mA,( 2 pieces output)
  • Serial Communication Interface: RS232 C (RS485 Optional) or ETHERNET
  • Supply Voltage: 8 – 35 VDC, 10 – 30 Volt AC ( 100-240 Volt AC optional)
