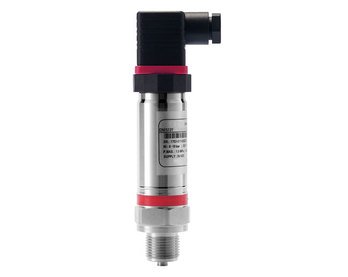

Industrial Type Pressure Transmitter Dimens DMS131S

Standart Pressure Transmitter Dimens | Measurement Devices

Industrial-type pressure transmitter Dimens DMS131S has excellent stability, very high sensitivity, is easy to install, and does not require maintenance.

Technical Properties

  • Brand / Model: Dimens DMS131S
  • Pressure Range: -1…0 ~ 100 mBar…..800 Bar
  • Electrical Output: 4-20mA, 4-20mA + HART, 0-5VDC, Modbus-RTU/RS485, others
  • Supply Voltage: 12~30VDC
  • Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
  • Accuracy: ±0.1%
  • Without hysteresis: 0.1%TS
  • Repeatability: 0.1%TS
  • Maximum Pressure: X1.5
  • Process Temperature: -30℃～80℃ (-45℃～160℃, -45℃～205℃ opt)
  • Ambient temperature: -20℃～85℃
  • Protection: IP65, IP67
  • Diaphragm Material: AISI 316L, Hastelloy C
  • Body Material: AISI304, AISI 316L,
  • Mechanical Connection: G1/4”, G1/2”, NPT 1/4, R1/4, M20x1.5
  • Exproof Protection: ExiaIICT4
