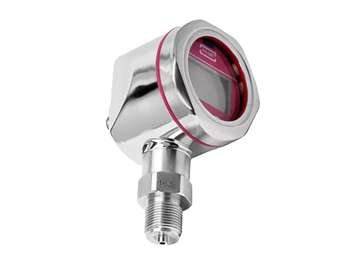

Smart Pressure Transmitter DMS305-TLF

The pressure sensor signal is collected and processed using innovative microprocessor and surface mount technology, and measurement inaccuracy is also corrected using an internal temperature sensor. The pressure transmitter's performance is greatly enhanced by this. The redesigned external three-setting keypad makes parameter adjustments simpler to use and guarantees safer operation in risky circumstances. Remote configuration of measurement data is possible because of the HART function.

• Excellent stainless steel welding technology and surface treatment process meet international hygienic standards.
• Durable integrated stainless steel body to ensure long performance life.
• Stainless steel surface roughness Ra≤ 0.4μ m complies with international sterile standards.
• Robust and superior stainless steel process flange.
• Terrific Extra thick reinforcement structure.
• Strong protection with high static pressure and high overload.

Technical Properties

• Brand / Model: Dimens / DMS305-TLF
• Measurement Range: 0.5Bar-1000 Bar (Adjustable Pressure Range)
• Output Signal: 4-20mA, 4-20mA+HART, Ask for different signals
• Precision: ±0.2% URL, ±0.5% URL, optional ±0.1% URL
• Stability: ±0.1% URL/Year
• Diaphragm: SUS316L, Hastelloy C
• Fluid Temperature: -40-120℃
• Protection Class: IP67
• Mechanical Connection: M20*1.5(M), G1/2(M), G1/4(M), 1/2 - 14NPT (M), 1/4 -18NPT (M), etc
• Certificates: CE, Ex-proof
