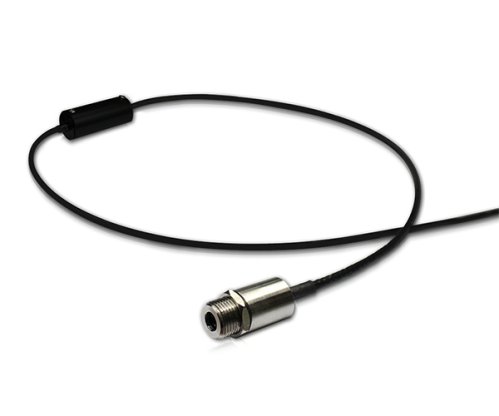

Infrared Thermometer IR-compact

IR-Compact: Your Infrared Temperature Sensing Solution

Introducing IR-Compact: Your Non-Contact Infrared Thermometer

Unlock the power of precise temperature measurement with the IR-Compact non-contact infrared thermometer. It's a sophisticated device that detects and measures the infrared wavelength emitted by your target spot, converting it into a standard current signal output (ranging from 4 to 20mA). With its impressive range, it can accurately measure temperatures from a chilly -60°C to a scorching 380°C, all at a comfortable distance of 8 times the spot size.

Customize your measurements effortlessly with an adjustable emissivity range from 0.10 to 0.99. The IR-Compact offers real-time temperature monitoring on-site, thanks to its cutting-edge infrared sensor and signal processing module.

Versatility is its strength, making it perfect for various applications such as plastics, fluids, rubber, coated components, asphalt, wood, paper, ceramics, textiles, glass, and even food. Take your temperature measurement game to the next level with the IR-Compact non-contact infrared thermometer.

Technical Properties:

Measured Range: -60°C to 380°C
Sensor Type: Thermopile
Accuracy: ±1°C Full Scale
Error Range: ±1%
Field of View (D:S Ratio): 8:1
Wavelength Range: 8 to 14 micrometers
Response Time: Within 100 milliseconds
Emissivity: Adjustable from 0.10 to 0.99
Analog Output: 4mA to 20mA
Communication Output: RS-485 Communication
Power Supply: DC 12V to 24V (Maximum 200mA)
Operating Temperature: 0°C to 80°C
Resolvable Temperature: 0.1°C
Operating Relative Humidity: 5% to 90%
Storage Temperature: -30°C to 85°C
International Protection: IP65, NEMA 4
External Material: Stainless Steel (SUS)
Weight: 285 grams
