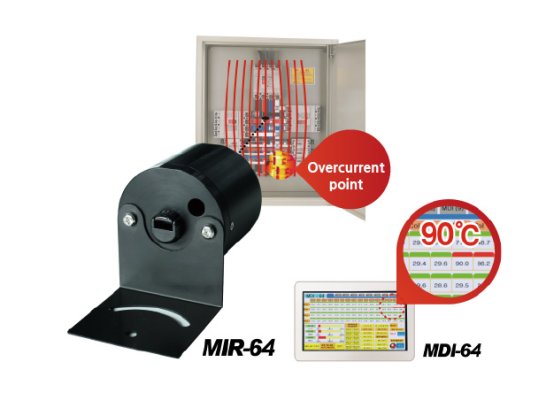

MIR-64/MDI-64 Smoke Detector

Introducing RST Measurement and Control Technologies' cutting-edge solution for fire prevention in high-voltage distribution panels, culverts, and secondary battery storage areas. In this era of surging electricity consumption, safety is paramount. Our state-of-the-art MDI-64 products, designed for seamless monitoring and control, offer the ultimate peace of mind.

Key Features:

• Effortless Scalability: Connect up to 10 MDI-64 units with a single touch screen, ensuring comprehensive control at your fingertips.
• Adaptable Installation: Place the MIR-64 product in the measurement position, and position the MDI-64 product within a 1KM radius as needed, providing unparalleled flexibility.
• Real-Time Vigilance: Utilize ETHERNET communication to monitor and control in real time from the comfort of your control or situation room.
• Seamless Integration: Stay connected by using RS232 communication to link with other communication systems effortlessly.

Enhance your safety infrastructure with RST Measurement and Control Technologies' innovative solution, tailored for today's high-demand industries.

MIR-64 Technical Specification:

• Power: DC 24V
• Dimensions: 55mm in diameter, 52mm in height
• Power Consumption: 0.84W
• Temperature Measurement Range: -20°C to 300°C
• Measurement Type: 16x4 Infrared Temperature
• Measurement Error: ±1°C
• Measurement Range: 60°x16° Field of View (FOV)
• Communication: Available
• Relay Output: Available

MDI-64 Technical Specification:

• Case: Front Waterproof Type
• Screen Size: 7 inches (Option for 10.2 inches)
• Resolution: 800x480
• Communication Ports: RS232x2, RS485x1, Ethernetx1
• Touch Type: Pressure Sensing Type (Resistance Membrane Type)
• Sound: Internal (No SD card necessary)
• Power: 12V to 24VDC
• Cutting Size: 177mm x 114mm
• Power Consumption: Less than 5W
