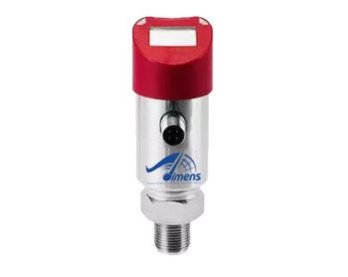

Digital Pressure Switch DMS-PS131

Digital Pressure Switches | Transmitters

Pressure Switch DMS-PS131 features high-performing monosilicon sensor technology and a design that will withstand even the most demanding application situations. It has a large menu with many options and offers the best visual effects thanks to its cutting-edge OLED display mode. It features a smooth user interface for machines and people. The gas-directing side and the electronic component are well protected from moisture's effects by the independent air gap structure. To make the most of various industrial applications, it is the ideal solution for high pressure, moisture condensation prevention, high precision, and other demanding functions.

  • Simple structure, easy to use.
  • Originally patented high performance monosilicon pressure sensor.
  • High overpressure, high accuracy.
    5 bit 0.96” highlighted OLED display, rich display messages and streamlined operation interface.
  • 180° rotatable display function, easy to observe with horizontal installation.
  • 2 PNP or 2 NPN outputs support transistor output manual adjustment function.
  • Triple data protection to ensure product data security.
    350° free rotation, suitable for installation at various angles.
  • Wide application.
  • Optional double-cavity high overload protection structure.
  • Optional double diaphragm anti-condensation structure.

Technical Properties:

  • Brand Model: Dimens / DMS-PS131
  • Pressure types: gauge pressure
  • Measuring range: 200mbar-400Bar
  • Output signal: 4-20mA, 1-5VDC, Modbus-RTU/RS485, PNP or NPN output, customer request
  • Referral accuracy: 0.1% URL
  • Stability: ±0.2% URL / 5 years
  • Ambient temperature: -40-120℃
  • Process connection: Standard G1/4(M), G1/2(M), M20*1.5(M), optional
  • Electrical connection: Pin Cable M12*1 (5 pin)
