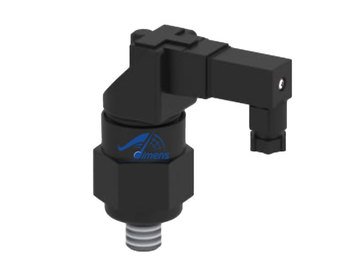

Pressure Switch DMS-XXP

Pressure Switches

Pressure switches are products that detect the pressure of the process in which they are installed and produce output when the pressure value rises above or falls below the set value.

Technical Properties:

  • Body Material: Polypropylene
  • Diaphragm: NBR, (Viton opt.)
  • Plastic Parts: Polypropylene
  • O-Ring: NBR
  • Mechanical Connection: R1/4”
  • Max Compressive Strength: x1.5
  • Contact: 1xNO/NC
  • Working Life: 10,000,000
  • Operating Temperature: -40…+60 °C
  • Protection class: IP65
  • Measurement Area
    DMS00: (-)0.8 ... (-)0.1 ba
    DMS01p: 0.2 .. 1 bar
    DMS05p: 0.5 .. 5 bar
    DMS10p: 1 .. 10 bar
    DMS20p: 2 .. 20 bar
