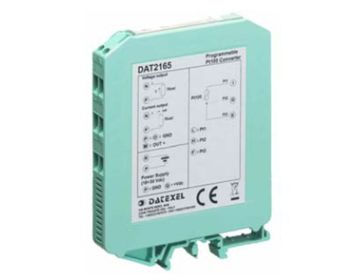

Rail Type Pt100 Temperature Signal Converter

Pt100 Temperature Signal Converter

Dat 2165 is rail type programmable PT100 signal transducers. 2-wire or 3-wire of the PT100 signals convert into 4-20mA, 0-20mA or 0-10 volt and it is programmable with dipswitch. Calibration values are performed from ZERO and SPAN potentiometer.

Technical Documentation
Technical Properties
  • Product Code: Dat2165
  • Input Signal: RTD, Pt100,
  • Resistance: Refer to the adjustment range of the technical documentation.
  • Output Signal: 4-20mA, 0-20mA, 0-10 volt
  • Supply Voltage: 18 to 30 Vdc
  • Withstand Temperature: Operative- 4°F +158°F - 20°C +70°C
    Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
  • Humidity: 0-90%.
  • Housing: Material Self-extinguishing.
  • Weight: 3 oz 90 g.
  • EMC. For industrial environments.
  • Immunity: EN 61000-6-2.
  • Emission: EN 61000-6-4.
  • Adjustment: with Dip Switch
