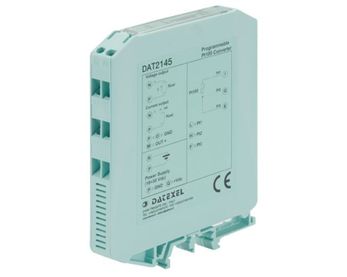

Thermocouple Temperature Signal Converter DAT2145

Dat 2145 is rail type programmable Thermoucouple signal transducers. Thermocouple of signal convert into 4-20mA or 0-10 volt and converters are programmable by dip switches. Calibration values are performed from ZERO and SPAN potentiometer.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Product Code: Dat2145

• Input Signal: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Refer to technical document for the temperature range.

• Output Signal: 4-20mA, 0-10 volt

• Supply Voltage: 18 to 30 Vdc

• Withstand Temperature: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.

• Humidity: 0-90%.

• Housing: Material Self-extinguishing.

• Weight: 3 oz 90 g.

• EMC. For industrial environments.

• Immunity: EN 61000-6-2.

• Emission: EN 61000-6-4.

• Adjustment: with Dip Switch
