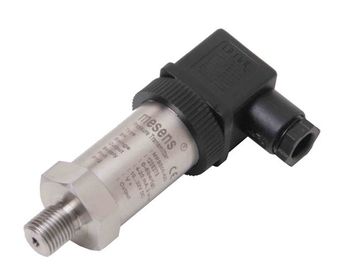

Pressure Transmitter Dimens DMS20S

All of the most recent innovations in the field of contemporary electronic pressure measurement are incorporated into the small pressure transmitter. The most affordable devices created after ten years of research and development are the pressure gauge series. To guarantee the quality of the pressure transmitter, the pressure sensor adopts completely automatic linear and temperature compensation technology. To ensure long-term dependability, the pressure transmitter has a completely sealed and isolated air gap design. Utilizing unique calibration technology, the signal transmission module makes parameter setting simple and tool-free.

• It has a fantastic, long-lasting structure.
• The most affordable pressure measurement solutions are offered by their powerful yet small appearance.
• To guarantee consistent quality, it has time deviation testing and pressure impact testing.
• With its proprietary pressure sensor technology, it adapts to every obstacle in the working environment.
• Without using any instruments, the original calibration technology can quickly modify parameters.
• Due to its high transient voltage resistance, it can readily handle overvoltage

Application areas:

• Pressure Gauges
• Treatment Systems
• Food Sector
• Drug Industry
• Chemical Sector
• Textile
• Machine

Technical Properties

• Brand / Model: Dimens DMS20S
• Pressure Range: -1…0 ~ 100 mBar…..1000 Bar
• Electrical Output: 4～20mA, 0～10V, 0～5V, 0.5～4.5V R/M
• Supply Voltage: 12~30VDC
• Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
• Sensitivity: 0.5%TS
• Without hysteresis: 0.1%TS
• Repeatability: 0.1%TS
• Response Time: ≤1ms (up to 90% TS)
• Maximum Pressure: X1.5
• Process Temperature: -30℃～105℃
• Ambient temperature: -20℃～85℃
• Protection: IP65
• Diaphragm Material: AISI 316L
• Body Material: AISI304
• Mechanical Connection: G1/4”, G1/2”, NPT 1/4, R1/4, M20x1.5, M14x1.5
• Exproof Protection: Intrinsically safe explosion-proof Exia Ⅱ CT6 (only for 4～20mA)
