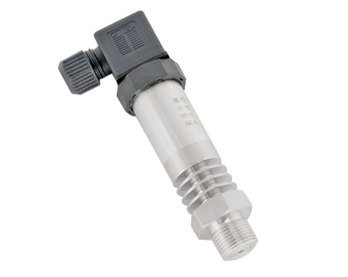

Dimens High Temperature Pressure Transmitter DMS21SHT

Quality Dimens High Temperature Pressure Transmitter | Turkey

With a high-precision signal processing circuit housed in a stainless steel body, the high-temperature pressure transmitter uses a high-temperature pressure sensor as the signal measurement element before converting the sensor's output signal into a standard signal.

Technical Properties

  • Brand / Model: Dimens DMS21SHT
  • Pressure Range: -1…0 ~ 100 mBar…..1000 Bar
  • Electrical Output: 4~20mA, 0~10V, 0~5V, 0.5~4.5V R/M
  • Supply Voltage: 12~30VDC
  • Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
  • Sensitivity: 0.5%TS
  • Without hysteresis: 0.1%TS
  • Repeatability: 0.1%TS
  • Response Time: ≤1ms (up to 90% TS)
  • Maximum Pressure: X1.5
  • Process Temperature: -30℃~350℃
  • Ambient temperature: -20℃~85℃
  • Protection: IP65
  • Diaphragm Material: AISI 316L
  • Body Material: AISI304
  • Mechanical Connection: G1/4”, G1/2”, NPT 1/4, R1/4, M20x1.5, M14x1.5
  • Exproof Protection: Intrinsically safe explosion-proof Exia Ⅱ CT6 (only for 4~20mA)
