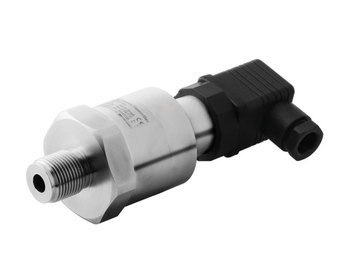

Mini Pressure Transmitter Dimens DMS10S

Miniature Pressure Transmitter Dimens DMS10S | Turkey

The compact pressure transmitter is combined with all the latest technologies available in the field of modern electronic pressure measurement. The pressure gauge series is the most cost-effective product designed after 10 years of research and development. The pressure sensor uses fully automatic linear and temperature compensation technology to ensure pressure transmitter quality. The pressure transmitter features a fully sealed and isolated air gap design to ensure long-term reliability. The signal transmission module uses original calibration technology to easily realize parameter settings without using any tools.

  • It has a fantastic, long-lasting structure.
  • The most affordable pressure measurement solutions are offered by the powerful yet small appearance.
  • To guarantee consistent quality, it has time deviation testing and pressure impact tests.
  • With its proprietary pressure sensor technology, it adapts to every working environment obstacle.
  • Without using any instruments, original calibration technology can quickly modify parameters.
  • Due to its high transient voltage resistance, it can readily handle overvoltage.

Technical Properties

  • Brand / Model: Dimens DMS10S
  • Pressure Range: 0 ~ 400 mBar…..60 Bar
  • Electrical Output: 4~20mA, 0.5~4.5V R/M
  • Supply Voltage: 12~30VDC
  • Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
  • Sensitivity: 0.5%TS
  • Without hysteresis: 0.1%TS
  • Repeatability: 0.1%TS
  • Response Time: ≤90ms
  • Maximum Pressure: x3
  • Process Temperature: -30℃~105℃
  • Ambient temperature: -20℃~85℃
  • Protection: IP65
  • Diaphragm Material: AISI 316L
  • Body Material: AISI304
  • Mechanical Connection: G1/4”, G1/2”
