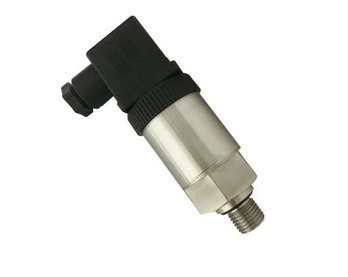

Hydraulic Pressure Transmitter Dimens DMS11SH

Hydraulic Pressure Sensor | Affordable Prices

The Dimens DMS11SH pressure transmitter has an incorporated shock buffer that was created specifically for hydraulic industry applications with harsh environmental effects such as cavitation, hydraulic breaker, and pressure peak. Even under challenging environmental circumstances, the Dimens DMS11SH delivers accurate pressure measurement.
A variety of output signals and pressure references are offered by the Dimens DMS11SH.
Dimens DMS11SH is able to meet the strict requirements of industrial applications thanks to its excellent seismic performance, sturdy design, and high-grade EMC/EMI shielding.

Technical Properties

  • Brand / Model: Dimens DMS11SH
  • Pressure Range: 0 ~ 400 mBar…..600 Bar
  • Electrical Output: 4~20mA, 0-10 VDC, 0.5~4.5V R/M
  • Supply Voltage: 12~30VDC
  • Pressure Type: Gauge Pressure, Absolute Pressure
  • Sensitivity: 0.5%TS
  • Without hysteresis: 0.1%TS
  • Repeatability: 0.1%TS
  • Response Time: ≤90ms
  • Over Pressure: 1.5 x F.S
  • Burst Pressure: 2 x F.S
  • Process Temperature: -40℃~100℃
  • Ambient temperature: -20℃~85℃
  • Protection: IP65
  • Diaphragm Material: AISI 316L
  • Body Material: AISI304
  • Mechanical Connection: G1/4”, G1/2”
