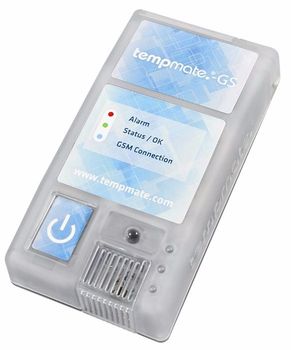

Real-Time Temperature & Humidity Data logger
End-to-End Monitoring of the entire Supply Chain.
tempmate.®-GS is the latest real-time monitoring solution on the market, celebrating its world premiere at FRUIT LOGISTICA. Featuring innovative sensor, communication technology, GPS and real-time alerts, it’s the most efficient, reliable and cost-effective GSM disposable temperature and humidity data logger. Combined with the convenient tempmate.
®-Cloud solution, data can be easily checked, managed and analyzed online. The global connectivity via the GSM network provides permanent monitoring of the entire supply chain. By making it possible to react when a problem occurs during transport or even before, using the new tempmate.®-GS saves time and money. In combination with the tempmate.®-Cloud, it provides a variety of unique features, offering continuous information about the current status of a shipment or equipment.
Curious about your Cold Chain? tempmate.®-GS continuously monitors all relevant data.
tempmate.®-GS loggers are specially designed for temperature and humidity monitoring in any cold chain logistics. With the GSM connectivity you are able to track your shipment and to receive a warning before a problem occurs. The reprogrammable device tempmate.®-GS can be instantly used to monitor your sensitive goods. The tempmate.®-Cloud helps you for further analysis and reporting, containing detailed information such as data curve, every single measurement as a table and statistical information.
Your benefits from our temperature data loggers at a glance
- Real-Time Monitoring
- GSM-Location Tracking
- World-Wide Connectivity
- Operational up to 90 Days
- Preconfigured & Reprogrammable
- High-Precision T/rH-Sensor
- Self-Calibrating Sensors
- Smart Design, Intuitive Operation
- Advanced Reporting and Administration via teampmate.®-Cloud
- Intelligent LEDs for Status Monitoring
- Up to 6 Alarm thresholds
- Enhanced Temperature Range
Technical Documentation
- PDF l Technical Properties
- PDF l User Guide
- PDF l Connection Scheme
Technical Data
| Data logger type | Single-Use GSM Data Logger |
| Temperature range | -30 °C to 70 °C |
| Temperature Accuracy | ±0.2°C(–25°C/+60°C);±0.5% |
| Temperature Resolution | <0.1°C |
| Data Storage capacity | Max 15600 records |
| Humidity | 0 to 100%rH / Accuracy [0..90%rH] < ±2.5%, [90%..100%] < ±3.5% |
| Resolution Humidity | 1% |
| Ambient Light | 0 to 16000lx / Accuracy < 10% |
| Resolution Ambient Light | 1 lx |
| Shelf Life / Battery | 2 Years at -25°C to +35°C / 2x CR17450 |
| Recording Interval | 10 min Standard |
| Recording Duration | 90 Days Standard |
| Startup Mode | Button |
| Stop Mode | Button |
| Start Delay | Possible 1 Minute to 48 Hours |
| Protection Class | IP67 / NEMA 6 |
| Dimensions | 115/61/26 mm (l/w/h) |
| Weight | 165g |
| Certifications | CE, EN12830, EMC, RoHS |
| Validation Certificate | available as PDF in the Cloud |
| Software | tempbase.®-C Cloud |
| Report Generation | Readable in the Cloud |
| Password Protecion | Cloud Password Protection |
| Data Transfer | GSM Quad Band |
| Location | GSM Localization |
| G Sensor | 3-axis 6D-/4D- orientation detection/ ±16g / Accuracy: < ±2% |
| Alarm Configuration | Up to 6 Thresholds, Alarm Delay Programmable |
| Programmable | Via Cloud |
| Alarm Type | Single / Cumulative |
| Storage Temperature | -25°C to +35°C (room temperature suggested) |
| Case Material | Polycarbonate |
