Single-use temperature indicator

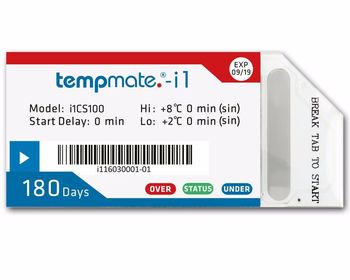

tempmate.®-i1 Single-use temperature indicator

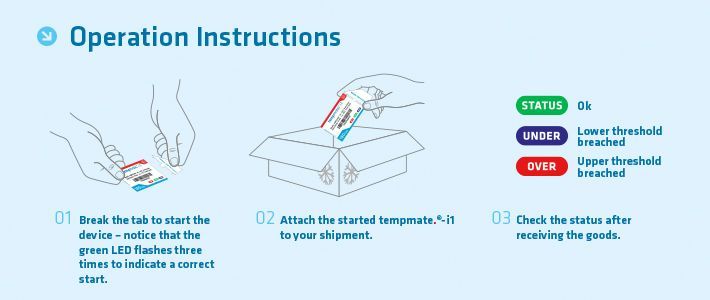

tempmate.®-i1 indicators use 3 built-in LEDs to directly show you the current alert status, meaning that no other software or hardware is necessary for you to be able to see the status of your goods.
Worried about your cold chain? tempmate.®-i1 constantly monitors all relevant values.
tempmate.®-i1 indicators have been specially developed for monitoring pharmaceutical products’ cold chain. As a pre-programmed device, the tempmate.®-i1 can be immediately deployed for monitoring temperature-sensitive goods and freight. In contrast to chemical indicators, this electronic indicator’s 3 LEDs provide simple, clear feedback on the current condition of your goods.
Your benefits at a glance
- Product-based temperature monitoring throughout the entire cold chain
- Cost-efficient and reliable
- Smart design and intuitive to use
- Waterproof and food-safe
- No additional hardware or software required
- Shelf life 4 years
- Intelligent LEDs display the current status
Technical Documentation
- PDF l Technical Properties
- PDF l User Guide
- PDF l Connection Scheme
Model selection
| i1 | Product |
| C | Temperature unit Celsius or F = Fahrenheit |
| S | Alert type single or C = cumulative |
| 1 | Alert thresholds: 1 = +2°C to +8°C 2 = +0 to +15°C 3 = +15 to +25°C |
| 0 | 0 min start delay or 1 = 10 min |
| 0 | 0 min alarm delay or 1 = 10 min |
Available configuration
| i1CS100 | +2 to +8°C no start delay, no alarm delay |
| i1CS110 | +2 to +8°C start delay 10 mins, no alarm delay |
| i1CS200 | 0°C to +15°C no start delay, no alarm delay |
| i1CS300 | +15°C to +25°C no start delay, no alarm delay |
| i1CS400 | +1 to +40°C no start delay, no alarm delay |
