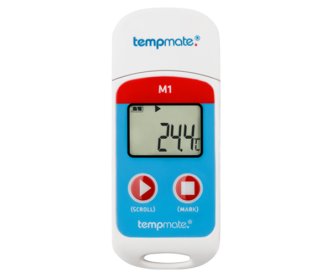

Tempmate Multi-Use Temperature Datalogger M1

Multi Use Temperature Recorder | Datalogger

The Tempmate M1 starts tracking the temperature right away.

  • Simply press the Start button to get started. The status of measurements may be easily seen thanks to its useful display.
  • Compatible with all monitoring modalities: It can be used to keep an eye on a moving load as well as a stationary component (like a refrigeration unit).
  • Cost-effective: The Tempo M1 can be used for many years.
  • Simple measurement download: automated generation of PDF reports, no program needed.

Pharmaceutical cold chain logistics temperature monitoring is made possible by the Tempmate M1 loggers. Your temperature-sensitive shipment can be immediately controlled using the preprogrammed Tempmate M1. The generated PDF report includes comprehensive data, including data curves, tables for each and every measurement, and statistical data. You may make sure that each logger is configured individually and that extensive data analysis or data management is also feasible with the optional, free tempbase software. Additionally, the device is exempt from the IATA's Dangerous Goods Regulations' labeling requirements.

Your Benefits in Brief

  • Cost-effective and dependable monitoring of product-related temperature along the whole cold chain in refrigerators or warehouses
  • Intelligent design and simple functioning
  • Waterproof and suitable for food
  • Free software is provided for setting up each individual logger.
  • Detailed PDF reports come with graphs and tables.
  • Multifunction displays have battery indicators.

Technical Properties:

  • Temperature Sensor NTC internal and external optional
  • Measuring Range –30°C to +70°C (–40°C to +90°C with ext. Sensor)
  • Accuracy ±0.5°C (at –20 ° C to + 40 ° C)
  • T90 5min ( internal sensor ) / 30s ( external sensor )
  • Resolution 0.1 °C
  • Data Storage 32,000 values
  • Display Multifunction LCD
  • Start Setting Manually by pressing button or automatically
    programmed start time
  • Recording Time By customer programmable. / up to 12 months
  • Interval 10sec. up to 11h 59min. (default 15 min.)
  • Alarm Settings adjustable up to 5 alarm limits
  • Alarm Type Single alarm or cumulative
  • Battery CR2032 / replaceable by customer
  • Dimensions 80mm x 34mm x 14mm (L x W x D)
  • Protection Class IP67
  • System Requirements PDF Reader
  • Connection Interface USB 2.0, A-Type
  • Certification 12830, validation certificate, CE, RoHS
  • Software tempbase. -D/free download
  • Interface to PC integrated USB port
  • Automatic PDF Reporting yes
