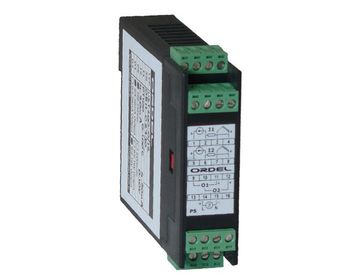

Universal Signal Converter

UST100 Signal Transducer different analogue signals at industrial systems used converts into analogue signals that at input isolated standard used.These products have one analogue input and one analogue output.Input and output signals are configured on computer.All inputs and outputs are isolated from each other.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Supply Voltage: 100-240Vac/dc: +%10- %15 24Vac/dc: +%10- %20

• Power Consumption: 2W, 3VA

• Analogue Input (I1): Thermocoupl :B,E,J,K,L,N,R,S,T,U

• Resistance Thermometer: PT100

• Current: 0/4-20mA

• Voltage: 0-50mV

• Analogue Input Impedances: Thermocoupl, mV:10MΩ, Resistance: 10 Ω

• Analogue Output(O1): Current: 0/4-20mA (RL≤500Ω) Voltage: 0/2V-10V (RL ≥ 1MΩ )

• Contact Life: Uncharged: 10.000.000 switching, 250V 3A

• At Resistive Charge: 100.000 switching

• Memory: 100 years, 100.000 refresh

• Accuracy: +/- % 0.2

• Sampling Time: 400ms

• Environment Temperature Working: -10...+55° C Storage: -20...+65° C

• Protection Class: Body:IP20

• Dimensions: Width: 25mm, High: 91mm, Depth: 113mm

• Weight: 134gr
