2 Input-Output Universal Signal Converter

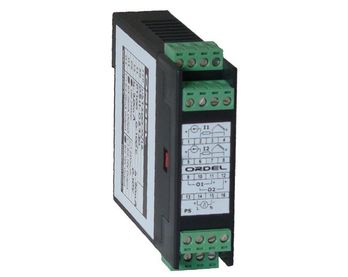

2 Channel İnput – Output UST200 Signal Converter

UST200 Signal Transducer two pieces analogue signals at industrial systems used converts into two pieces analogue signals that at input isolated standard used. These products have two analogue inputs and two analogue outputs. Input and output signals can be adjustable on computer.All inputs and outputs are isolated from each other.

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Supply Voltage: 100-240Vac/dc: +%10- %15 24Vac/dc: +%10- %20
  • Power Consumption: 2W, 3VA
  • Analogue Inputs (I1, I2): Thermocoupl :B,E,J,K,L,N,R,S,T,U
  • Resistance Thermometer: PT100
  • Current: 0/4-20mA
  • Voltage: 0-50mV
  • Analogue Input Impedances: Thermocoupl, mV:10MΩ, Resistance: 10 Ω
  • Analogue Output(O1): Akım: 0/4-20mA (RL≤500Ω) Voltage: 0/2V-10V (RL ≥ 1MΩ)
  • Contact Life: Uncharged: 10.000.000 switching, 250V 3A At
  • Resistive Uncharged: 100.000 switching
  • Memory: 100 year, 100.000 refresh
  • Accuracy: +/- % 0.2
  • Sampling Time: 400ms
  • Environment Temperature Working: -10...+55°C Storage: -20...+65° C
  • Protection Class: Body: IP20
  • Dimensions: Width: 25mm, High: 91mm, Depth: 113mm
  • Weight: 134gr
