DAT4530 Universal Input Dual Output Signal Converters

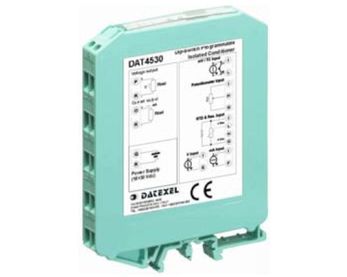

DAT 4530 Universal Signal Converter

Dat 4530 Signal Transducer works at industrial systems and heavy conditions.These products convert of current, voltage, thermocouple, RTD, mV, Voltage, mA, resistance, and potantiometer signals as two outputs to 4-20mA, 0-20mA or 0-10 volt.There are galvanic isolation between supply, input and outputs.Therefore it unaffected from noise and is used at very heavy conditions. Also input signal selection of input signal and output signal from both computer and on dipswitch are adjustable.

Technical Documentation
Technical Properties
  • Product Code: DAT 4530 (Made in Italy)
  • Input Signal: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, RTD, mV, V, mA. You see for others Data sheet
  • Output Signal: 4-20mA, 0-20mA, 0-10V. Active and Passive
  • Supply Voltage: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
  • Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
  • Withstand Temperature: Operative- 4°F +158°F - 20°C +70°C
  • Storage Temperature: - 40°F +185°F - 40°C +85°C.
  • Humidity: (none Condensing) 0-90%.
  • Housing: Material Self-extinguishing.
  • Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
  • Weight: 3 oz 90 g.
  • EMC.: For industrial environments.
  • Immunity: EN 61000-6-2.
  • Emission: EN 61000-6-4.
  • Konfiguration: Computer and DIP Switch
