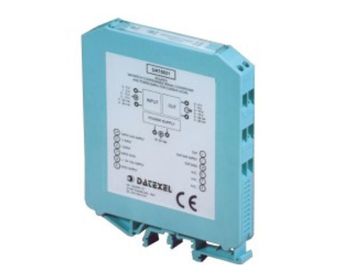

DAT5021 Insulated Volt, mA Input Output Signal Converters

Dat 5021 Signal Transducer works at industial systems and heavy conditions. Input, output and supply voltage are isolated converter fully from each other. Adjustable inputs 0-10 volt, 2-10 volt, 0-5 volt, 1-5 volt, 4-20 mA and 0-20 mA. Adjustable outputs 0-10 volt, 2-10 volt, 0-5 volt, 1-5 volt, 4-20 mA and 0-20 mA. Selection of input signal and output signal adjustable from PC and dipswitch easily.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Product Code: DAT 5021 (Made in Italy)

• Input Signal: 0-10 volt, 2-10volt, 0-5 volt, 1-5 volt, 4-20mA and 0-20mA. Adjustable with dipswitch and PC.

• Output Signal: 0-10 volt, 2-10volt, 0-5 volt, 1-5 volt, 4-20mA and 0-20mA, Adjustable with dipswitch and PC.

• Supply Voltage: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.

• Current Consumption: Current output 35 mA max. Voltage output 25 mA max.

• Withstand Temperature: Operative- 4°F +158°F - 20°C +70°C

• Storage Temperature: - 40°F +185°F - 40°C +85°C.

• Humidity: (none Condensing) 0-90%.
• Housing: Material Self-extinguishing.

• Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.

• Weight: 3 oz 90 g.

• EMC.: For industrial environments.
• Immunity: EN 61000-6-2.
• Emission: EN 61000-6-4.

• Configuration: Computer and DIP Switch
