Universal Input - Output Indicators

Universal Indicators

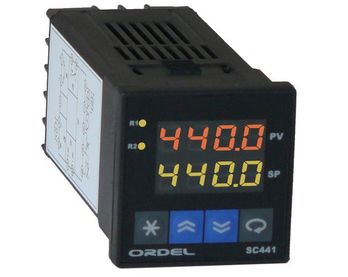

SC441 Model devices was designed to measure variable parameters in industriyel environments,to show this parameters as digital and to provide needed controls.

General Properties

  • 2 Pieces 4 Digit Numerical Display
  • 2 Pieces LED Display
  • 1 Pieces Transmitter Supply Output (24Vdc)
  • 1 Pieces Universal Sensor Input (TC, RT, mA, mV, V )
  • 1 Pieces Analogue Output (0/4-20mA, 0/2-10V)
  • 2 Pieces Role or Logic Output (24V)
  • 100-240Vac Universal or 24Vac/dc Supply
  • Between Input/Output Moduls Izolation
  • 1 Pieces RS485 Communication Modul
  • Auto-Tuning (automatic setting of PID parameters)
  • Sensor Fault Detection
  • 9 Differential Role Function
  • ON/OFF, P, PI, PD, PID Control
  • Lineer ve Time-Oransal Control Output
  • 100ms Sampling ve Control Translation
Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Supply Voltage: 100-240Vac/dc: +%10- %15 or 24Vac/dc: +%10- %20
  • Power Consumption: 4W, 6VA
  • Universal Sensor Input(S1): Thermocupl :B,E,J,K,L,N,R,S,T,U
  • Two Wired Transmitter: 4-20 mA
  • Resistance Thermometer: PT100
  • Current: 0/4mA
  • Voltage: 0-50mV, 0/2-10V
  • Transmitter Supply(TX): 24Vdc (Isc=30mA)
  • Analogue Input Impedances: Thermocupl, mV:10MΩ
  • Resistance: 10 Ω
  • Voltage: 1M Ω
  • Analogue Output(O1) Current: 0/4-20mA (RL≤500Ω), Voltage: 0/2V-10V (RL ≥ 1MΩ )
  • Role Outputs(R1,R2), Contact: 250Vac 3A, Logic Output : 24Vdc 20mA
  • Contact Life: Uncharged: 10.000.000 switching, 250V 3A In Resistive
  • Charge: 100.000 switching
  • Memory: 100 year, 100.000 regeneration
  • Accuracy: +/- % 0.2
  • Sampling Time: 100ms
  • Ambient Temperature: Working: -10...+55° C, Storage: -20...+65° C
  • Protection Class Front Panel: IP54, Body:IP20
  • Sizes: Width: 48mm, Height: 48mm, Depth: 108mm
  • Board Cutting Dimensions: 45+/-0,5mm x 45+/-0,5 mm
  • Weight: 154gr
